• Input
- Format : SD / HD / 3G - SDI
- Suppoting Resolution : SMPTE 292M (1.485, 1.485 / 1.001Gbps)
SMPTE 259M-C (270Mbps)
SMPTE 424M (2.95Gbps)
- Connector : 1 x BNC
• Output
- Format : DVI (single link)
- Supporting Resolution : 1080P @ 60Hz

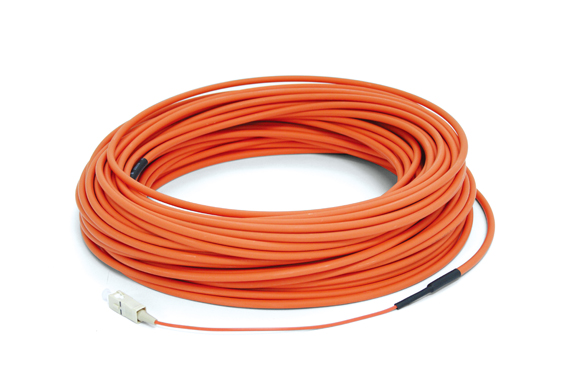

- Optical Fiber : 1 x SC
- Using Fiber Type : Multi-mode 50/125 or 62.5/125µm optic fiber
- Transmission Distance : Max 1,650ft (500meters)
• General
- Dimension : 115W x 70D x 90H (mm)
- Power Consumption : 2.6W
- Power Supply : 100 ~ 240V with DC 12V, 1.5A
- Enclosure Type : AL, Silver |
