L474 / R474 系列

品牌： IHSE
型号： L474 / R474
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购

Long-distance DVI extension


DVI and VGA extension

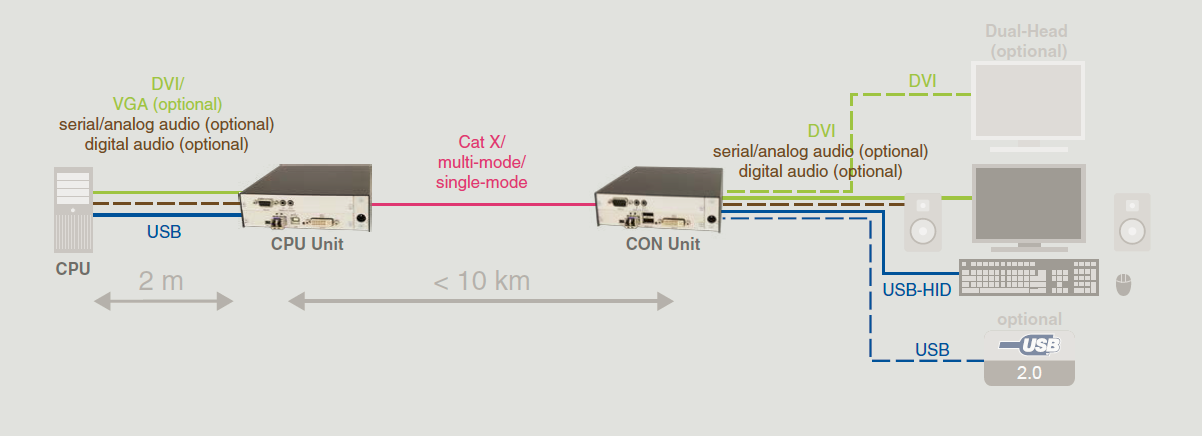

Draco vario DVI extenders enable long-distance extension of DVI computer video, together with USB-HID connection for keyboard, mouse and other compatible interface devices. Providing interconnection between user workstations and remote source computers. Connection between CPU Units (source) and CON Units (user workstation) is realized by single Cat X or fiber (single- or multi-mode), enabling connection at distances up to 140 m and 10 km.


Wide range of options

The Draco tera 474 series supports a wide range of input and output options to provide flexibility and extend the scope of integration. Including: redundant data transmission, USB2.0, RS232 and RS484, integral upscaling, analog and digital audio and more. All Draco vario modules are compatible with the Draco tera chassis series providing a wide range of installation options and customized system configuration capability.


XV eXtreme Velocity

For the highest possible image quality, Draco vario fiber XV versions handle extremely high quality video at 4K resolution and beyond.

Integration in Draco tera KVM matrix switch installations

Draco vario CPU and CON Units may be combined with Draco tera KVM matrix switches to create matrix switching systems of almost unlimited size and capability.


Product Features

  • Superior image quality in all resolutions

  • Single- and Multi-Head devices are available (please note that the number of monitors per PC is limited by the number of slots)

  • DVI-I / VGA devices available

  • Wide range of additional options:
    – Two USB ports for HID devices
    – USB 2.0 embedded
    – Serial interface (RS232 or RS422)
    – Analog audio
    – Digital audio

  • Redundant data link (optional)

  • 19” rack mount kit (optional)

  • Power supply included

  • All devices with optional redundant power supply (load-sharing)

  • DVI-D fiber devices are available as XV models. Due to the increased data transmission rate, a loss-free image transmission is possible in virtually all cases


Specifications

InputDVI-D (DVI-I/VGA model available)
OutputDVI-D (DVI-I/VGA model available)
Serial RS232 / RS422Up to 115,200 baud
Analog AudioBidirectional stereo audio connection, 24 bit, 38.4 kHz
Digital AudioCompatible with AES/EBU, S/PDIF, Dolby Digital, DTS, PCM, 32-96 kHz
USB DataUSB-HID (for keyboard and mouse)
USB 2.0 embedded up to 50 Mbit/s
USB 2.0 hi-speed up to 480 Mbit/s
Maximum Resolution1920 x 1200 @ 60 Hz
Color Depth8 bit / True Color
Maximum Cable DistanceCat X: 140 m
Multi-mode: 1 km
Single-mode: 10 km



Cat X

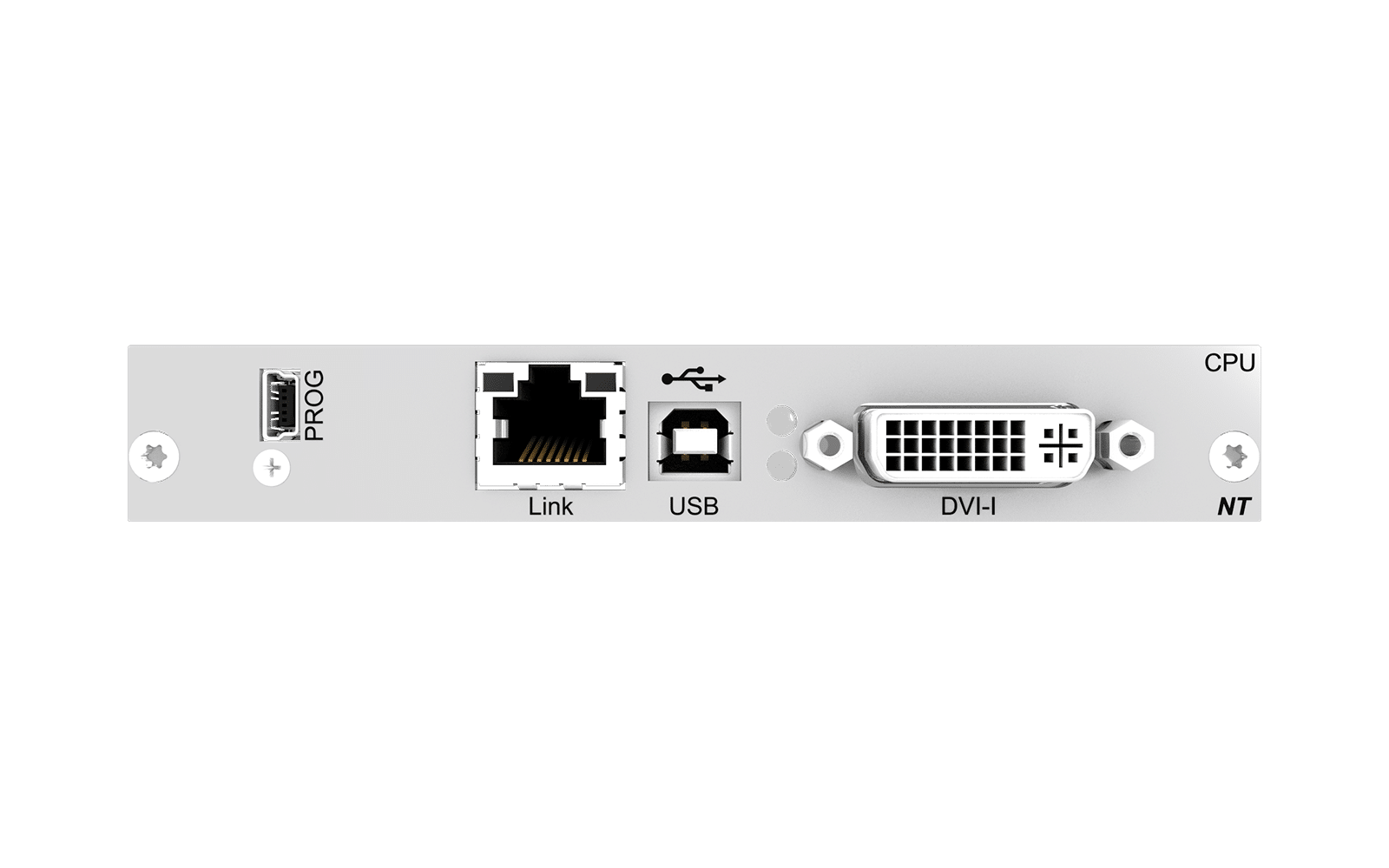

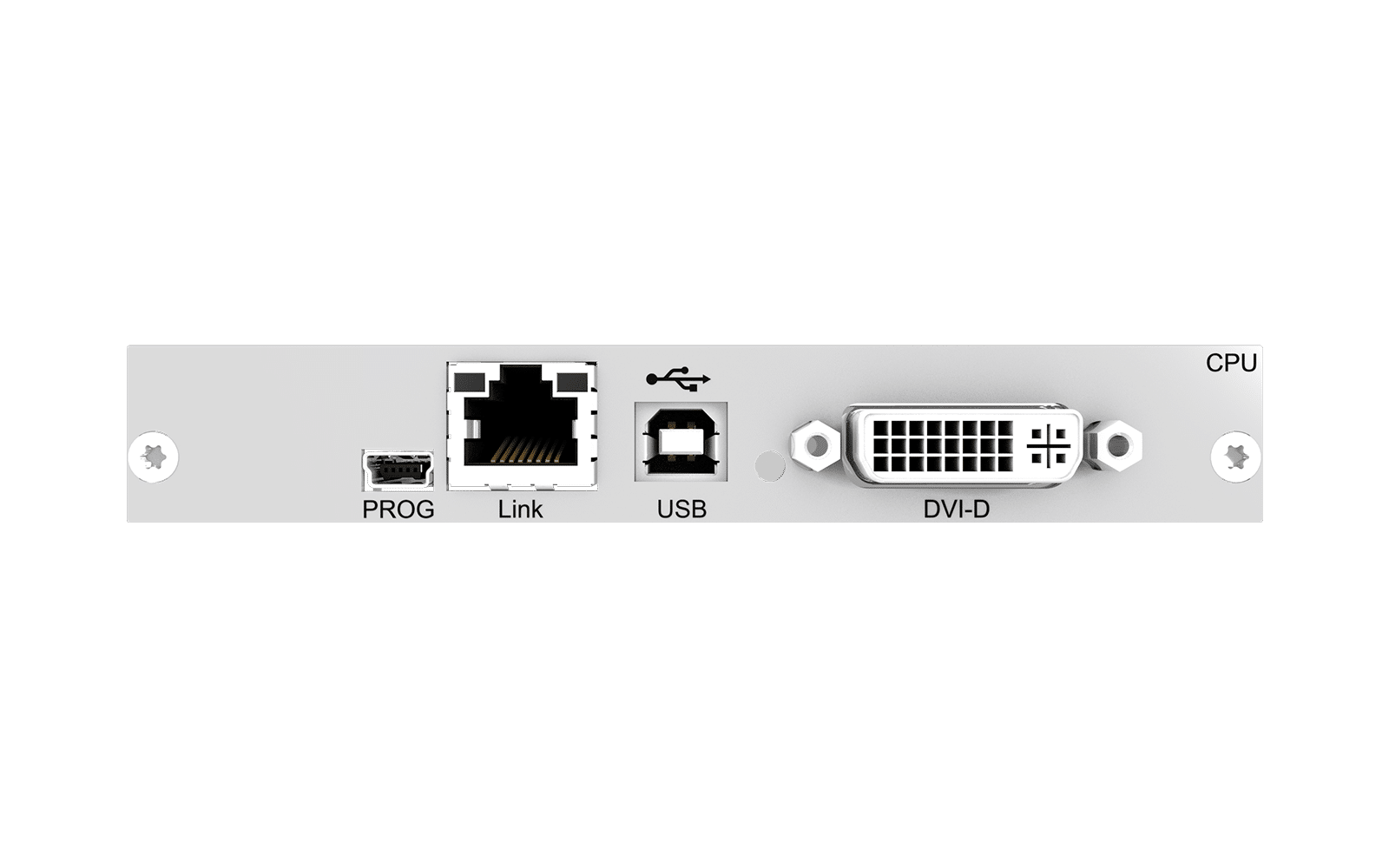

L474-BSHC

CPU module, 1x Cat X, 1x monitor, single-link, 2x USB-HID

L474-BSHCR

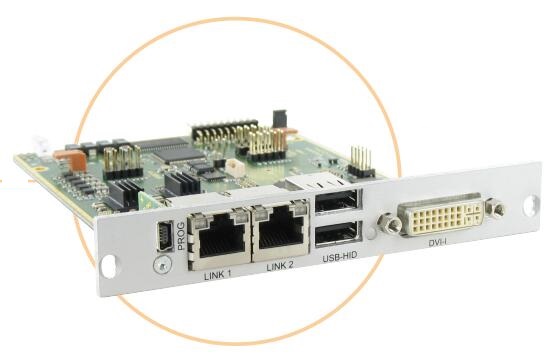

CPU module, 2x Cat X (redundant), 1x monitor, single-link, 2x USB-HID

L474-BSHCV

CPU module, 1x Cat X, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

L474-BVHC

CPU module, 1x Cat X, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

L474-BVHCR

CPU module, 2x Cat X (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID


Fiber（1 Gbit/s)

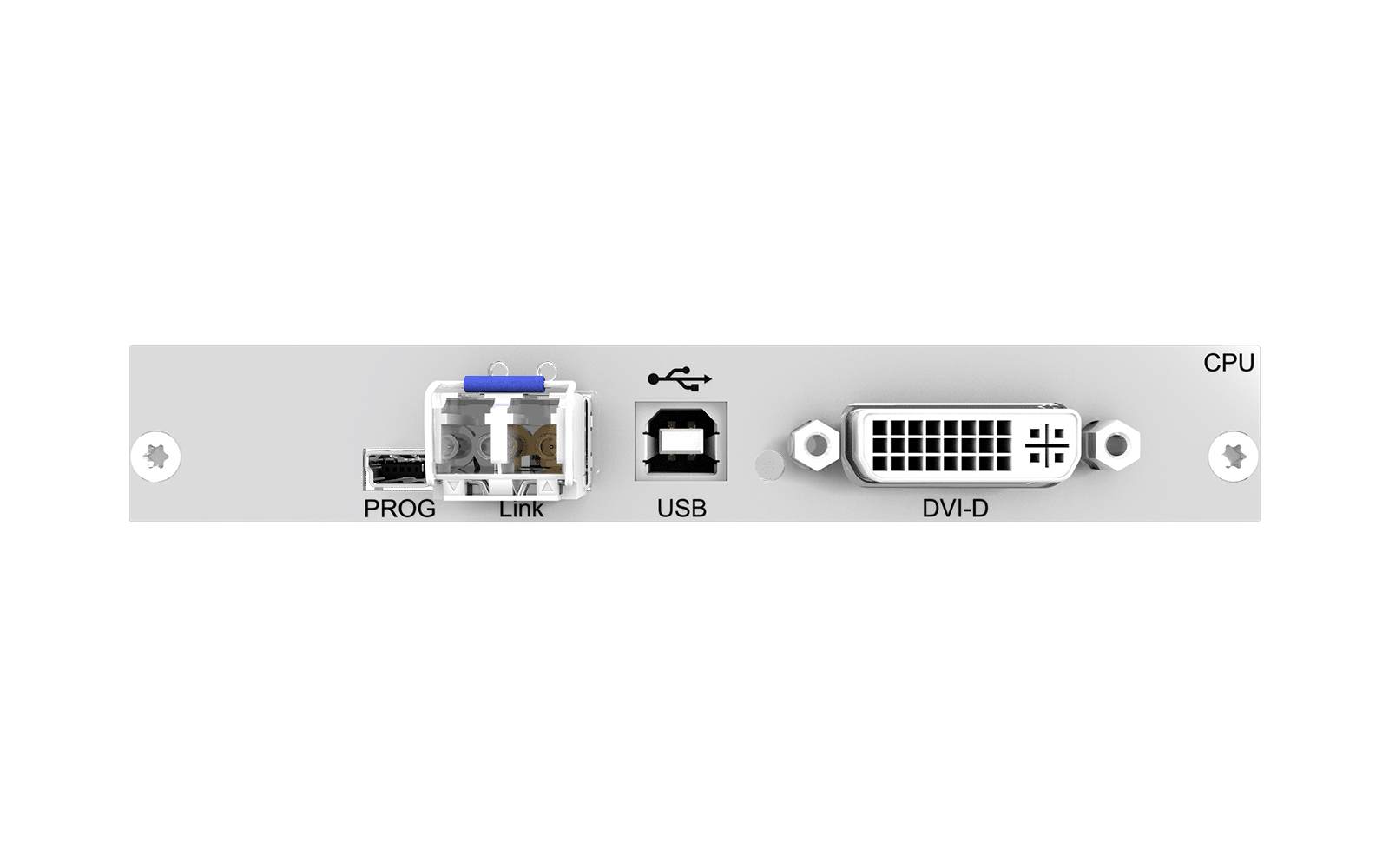

L474-BSHS

CPU module, 1x Fiber, 1x monitor, single-link, 2x USB-HID

L474-BSHSR

CPU module, 2x Fiber (redundant), 1x monitor, single-link, 2x USB-HID

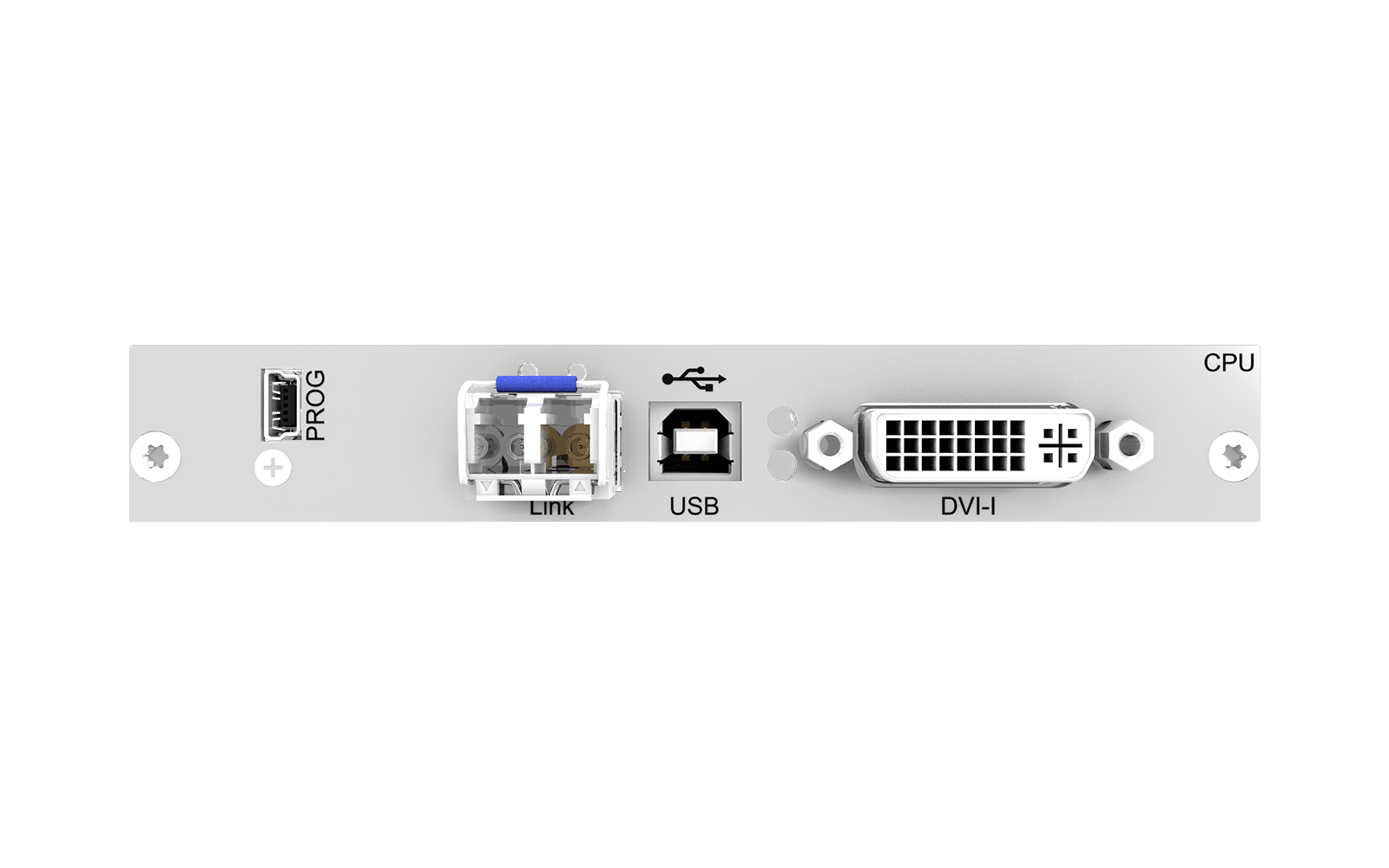

L474-BSHSV

CPU module, 1x Fiber, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

L474-BSHSV

CPU module, 1x Fiber, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

L474-BVHS

CPU module, 1x Fiber, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

L474-BVHSR

CPU module, 2x Fiber (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID


Fiber XV

L474-BSHX

CPU module, 1x Fiber XV, 1x monitor, single-link, 2x USB-HID

L474-BSHXV

CPU module, 1x Fiber XV, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

L474-BSHXV

CPU module, 1x Fiber XV, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

L474-BVHX

CPU module, 1x Fiber XV, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID


CON-Unit: Cat X

R474-BSHC

CON module, 1x Cat X, 1x monitor, single-link, 2x USB-HID

R474-BSHCR

CON module, 2x Cat X (redundant), 1x monitor, single-link, 2x USB-HID

R474-BVHC

CON module, 1x Cat X, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

R474-BVHCR

CON module, 2x Cat X (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID


CON-Unit: Fiber (1 Gbit/s)

R474-BSHS

CON module, 1x Fiber 1x monitor, single-link, 2x USB-HID

R474-BSHSR

CON module, 2x Fiber (redundant), 1x monitor, single-link, 2x USB-HID

R474-BVHS

CON module, 1x Fiber, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID

R474-BVHSR

CON module, 2x Fiber (redundant), 1x DVI-I (VGA) monitor, single-link, 2x USB-HID


CON-Unit: Fiber XV

R474-BSHX

CON module, 1x Fiber XV, 1x monitor, single-link, 2x USB-HID

R474-BVHX

CON module, 1x Fiber XV, 1x DVI-I (VGA) monitor, single-link, 2x USB-HID
