You’re viewing Server Technology’s family of Switched POPS Rack Mount PDU(s). These Switched Per Outlet Power Sensing Rack PDU(s) feature highly accurate, outlet-level power monitoring for your data center power needs. Switched POPS Rack PDU(s) are expandable and offer optional temperature and humidity probes. They also feature rack level power management, input power monitoring, environmental (temperature and humidity) monitoring, outlet groups and alarms.

With Per Outlet Power Sensing, you can see measurements for load (in amps), voltage, active power, apparent power, crest factor, power factor and power consumption (measured in W-hrs). Certain models also feature retractable fuse or breaker branch circuit protection. With POPS technology, outlets may be linked to one or multiple groups without loss of control of that individual outlet. SNMP trap email alerts give you automated warnings for power and environmental conditions. POPS units are also expandable, with the ability to add additional outlets through the link unit without additional IP address. The optional humidity and temperature probes are attached to 10-foot cords that allow for measurements in various locations within the cabinet. You can then view the values from the rack PDU interface or send out trap email alerts to warn when certain thresholds have been met or exceeded.

Details

Outlet Groups:

■ Control user-defined group(s) of outlets

■ Grouped outlets can still be individually remotely controlled

■ See outlet status, control state

Input Power Monitoring:

■ View input power feeds by branch/phase

■ Input load and power

SNMP Traps and Thresholds:

■ With POPS, you can configure SNMP traps for outlets and power input feeds

■ Define your high and low loads

■ Configure your traps for environmental monitoring (humidity and temperature)

More about POPS:

■ Simple, secure, integral web interface GUI configuration tool

■ Temperature and Humidity Support

■ Authentication logging, configuration changes and system events

■ Secure Syslog protocol support

■ Automatic Firmware Updates via FTP server

■ Emails log, event, authorization, power & configuration messages

■ Strong Password Support and Pre-Login Banner

■ Ability to Ping an IP address to see if the device is responding

■ Grouping of outlets across Master and Expansion PDUs

■ SNMP: Traps based on Status, Changes, Load, Temperature & Humidity

Family Description

The Server Technology® PRO2 Smart/Switched POPS PDU provides control of outlet power(Switched only) and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output (POPS only). These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Smart/Switched POPS “Master" PDU can be connected to as many as three (with optional module) PRO2 Smart/Switched POPS “Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

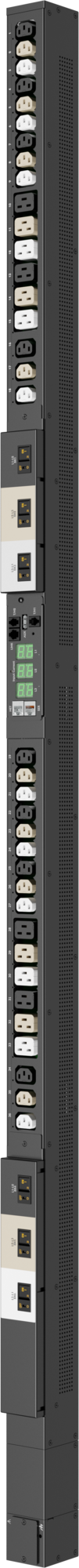

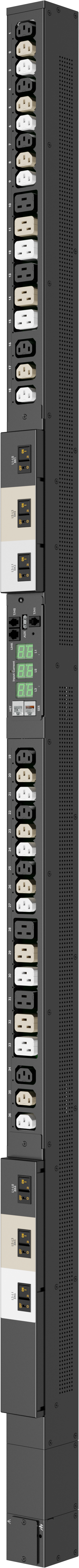

PRO2™ HDOT® 11.0kW - 22.0kW (36-42) outlets Rack PDU
	Key Features
		NETWORK MONITORING The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.		HOT-SWAP NETWORK CARD Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
		STAR MULTI-LINKING PRO2 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.		TEMPERATURE/HUMIDITY MONITORING PRO2 Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
		AUTO-FLIP CURRENT DISPLAY Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.		PER-INLET POWER SENSING Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
	Family Specifications
	Branch Monitoring:Current (A) Branch Overcurrent Protection:10 kAIC (North America) / (5 kAIC ROW) Branch Overcurrent Protection Type:Circuit Breaker: 2-pole Dual Input:No High Retention Outlets:Yes Input Current Display:Auto-Orient Input Monitoring:PIPS Locking Outlets:Yes Max Operating Temperature:60 °C Fast Movers:No Mounting:0U Vertical Outlet Monitoring:Determined By Outlet Module PDU Platform:pro2		Power Pivot Input:No Product Height (inch):70.0 Product Height (mm):1778 Product Max Depth (inch):3.0 Product Max Depth (mm):77 Product Nominal Depth (inch):2.5 Product Nominal Depth (mm):64 Product Width (inch):2.2 Product Width (mm):56
	Model No.

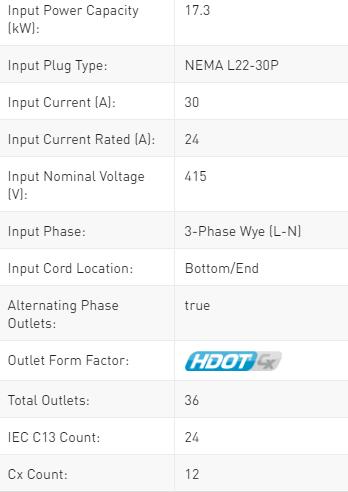

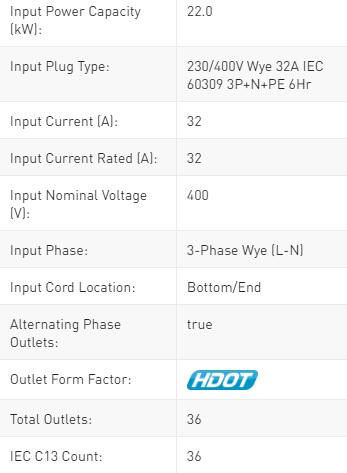

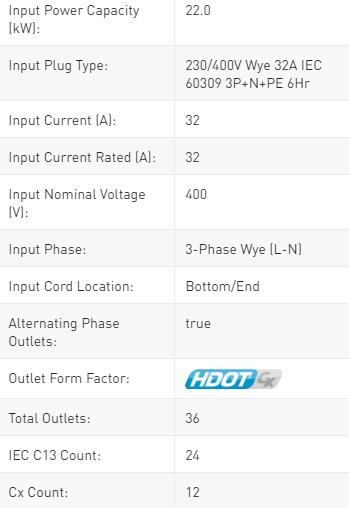

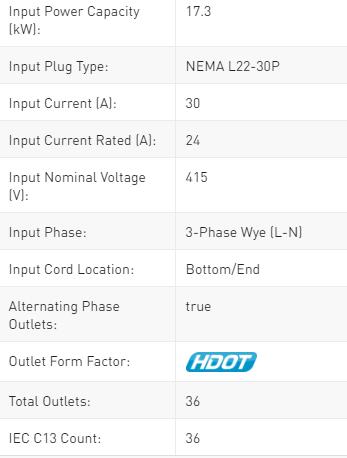

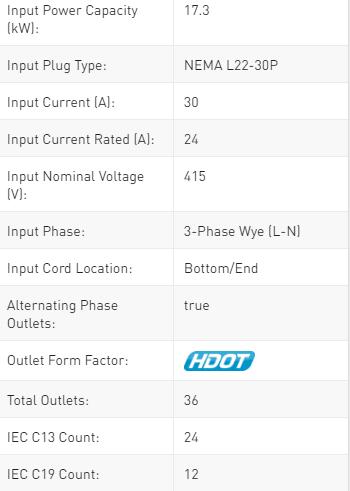

	C2WG36CE-4PAE2M00 (SWITCHED POPS)		C2WG36CE-4PAE2M66 (SWITCHED POPS)
	C2WG36CE-5CAE2M00 (SWITCHED POPS)		C2WG36CE-5CAE2M66 (SWITCHED POPS)
	C2WG36TE-4PAE2M66 (SWITCHED POPS)		C2WG36TE-5CAE2M66 (SWITCHED POPS)
