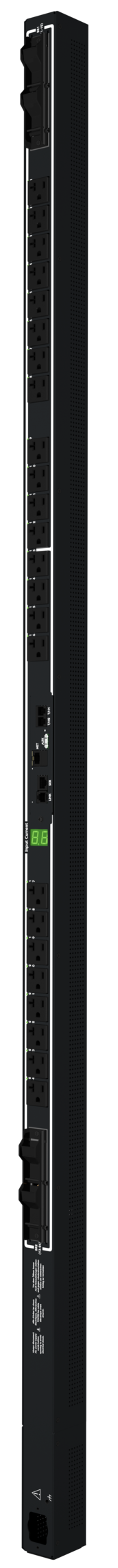

PRO1™ Switched C1W24VS 3.3kW - 7.3kW (24) NEMA outlets Rack PDU |
|
|
|
|
|
| | Key Features |  | NETWORK MONITORING The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more. |  | HOT-SWAP NETWORK CARD Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit. |  | STAR MULTI-LINKING PRO2 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card. |
|
|
|
|
|
|  | TEMPERATURE/HUMIDITY MONITORING PRO2 Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications. |  | AUTO-FLIP CURRENT DISPLAY Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets. |  | PER-INLET POWER SENSING Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy. |
|
|
|
|
|
|  | BRANCH CIRCUIT PROTECTION PRO2 meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses. |  | ALTERNATING-PHASE OUTLETS 3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow. |  | ALTERNATING-PHASE OUTLETS 3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow. |
|
|
|
|
|
|  | FLEXIBLE MOUNTING PRO2 includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details). |  | COLOR IDENTIFICATION Choose from six colors to designate circuits for rack PDUs in the data center. Color options include Blue, Red, Green, White, Yellow, and Black. |  | CISCO ENERGYWISE¹ COMPLIANT PRO2 meets the requirements set forth by Cisco Systems, Inc. for its EnergyWise program for monitoring of device energy. EnergyWise is a registered trademark of Cisco Systems, Inc. |
|
|
|
|
|
|
|
|
|
|
|
|
| Family Description | | The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
|
|

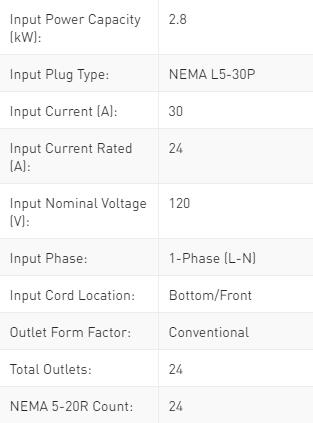

|  | Family Specifications |
| Branch Monitoring:Sense Branch Overcurrent Protection:100 kA Branch Overcurrent Protection Type:Fuse Retractor Dual Input:No High Retention Outlets:No Input Current Display:Auto-Orient Input Monitoring:PIPS Locking Outlets:No Max Operating Temperature:60 °C Fast Movers:No Mounting:0U Vertical Outlet Monitoring:None PDU Platform: PRO1 | Power Pivot Input:No Product Height (inch):65.5 Product Height (mm):1664 Product Max Depth (inch):3.0 Product Max Depth (mm):77 Product Nominal Depth (inch):2.25 Product Nominal Depth (mm):58 Product Width (inch):1.75 Product Width (mm):45 |
|
| | Model No. |
| | C1W24VS-1AFA25A5 | C1W24VS-1DFA25A5 |  |  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The switched PDU from Server Technology can turn on, off, or reboot outlets individually or as a group. Switched PDUs from Server Technology also feature outlet lock-out, power-up sequencing to reduce power-up inrushes and optional smart load shedding.
Not only do Server Technology’s Switched PDUs feature Smart PDU abilities for network access to power and environmental information, but these rack PDUs also give outlet control for reboot of locked-up devices as well as power-up sequencing.
Switched PDUs are designed to be perfect for all environments that require power + environmental monitoring, power-up sequencing, rebooting, scheduling power loads, and interoperability with Server Technology's award-winning Sentry Power Manager software for data centers. These Switched PDUs have been especially useful in rapidly growing environments, such as those found in colocations.
Server Technology Switched PDUs can be purchased with our award-winning High Density Outlet Technology (HDOT) and Alternating Phase technology. With HDOT, you get the highest outlet count in the most compact form factor of any PDU on the market. Alternating phase outlets alternate the phased power on a per-outlet basis rather than a per-branch basis. This design allows for shorter cords, faster installation and easier load balancing for 3-phase rack mount PDUs.
More about PIPS:
■ Power monitoring per inlet/infeed. ■ Power information per infeed includes current, voltage, power, apparent power, crest factor, reactance, power factor and acc umulated energy. ■ Accessed through either a secure network or serial connection. ■ A secure integral web interface provides a simple and easy way to monitor the PDU. Configuration choices include: SNMP tra ps, email alerts, grouping, and all security and communication settings.
|
