Perle IOLAN SCG控制台服务器为数据中心管理员提供了对具有RS232 RJ45控制台端口的设备的安全远程控制台管理。 要求经济高效的串行RS232到以太网1U机架解决方案并保持以太网上串行设备协议完整性的工程师和项目经理，必须首先考虑IOLAN SCG控制台服务器。 IOLAN SCG拥有高性能的处理器以及Perle独特的TrueSerial™技术，将通过以太网提供可靠的串行连接。 而且，借助高级安全功能，您的IT专业人员和网络运营中心（NOC）人员拥有所需的一切，可以轻松地在全球各个地方执行安全的远程数据中心管理和IT资产的带外管理。
IT资产的控制台管理

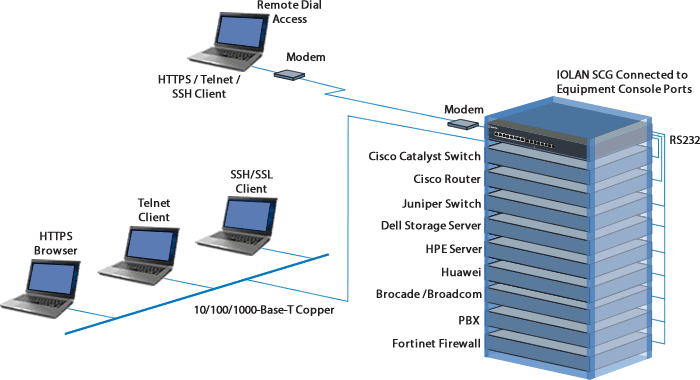

IOLAN SCG控制台服务器通过IP网络支持RS232 RJ45连接到设备上的控制台端口的设备，例如Cisco路由器，交换机，防火墙，服务器（Solaris，Windows，Unix和Linux）PBX，网络存储设备和安全设备。 RS232 RJ45端口可进行软件配置，以使用直通电缆或卷状电缆连接您的Cisco设备。 此外，可以将DCD引脚配置为需要此额外信号的第三方设备。 这意味着Perle IOLAN SCG支持的串行设备数量大大增加。 这使其成为位于数据中心或远程站点中的IT设备的理想带外管理解决方案。
实用的网络安全功能，身份验证和数据加密
要求IT管理员确保网络数据传输以及对IT设备上远程控制台管理端口的所有访问都是安全的。使用IOLAN SCG控制台服务器时，数据管理信息通过标准加密工具（例如安全外壳（SSH）和安全套接字层（SSL））得到保护。支持身份验证方案，例如RADIUS，TACACS +，LDAP，Kerberos，NIS和RSA Security的SecurID令牌，可确保对设备和数据的访问仅限于授权用户。
通过使用加密技术，IOLAN SCG控制台服务器可在通过企业内部网或公共Internet发送数据之前保护敏感和机密数据。为了与对等加密设备兼容，支持主要的加密密码，例如AES，3DES，RC4，RC2和CAST128。
IPSec标准是公认的通过Internet与远程专用网络通信的安全方法，它在OSI模型的网络层提供了IP数据包的可靠身份验证和加密。作为标准，它是网络内多供应商互操作的理想选择，它提供了灵活性以及为特定应用匹配正确解决方案的能力。
投资保护
自动协商的10/100 / 1000Base-T铜口将满足任何不断变化的网络访问要求。 如果升级以太网速度，则无需升级IOLAN SCG。
每个控制台端口上均具有强大的15Kv ESD保护电路，可防止静电放电和电涌。
易于设置和配置
IOLAN SCG非常容易在网络上启动和运行。 然后可以使用各种配置程序选项通过网络对设备进行配置，包括Perle Easy Config Wizard，Perle Device Manager，WebManager，CLI等。
对于大规模推出，Micro SD卡插槽可用于备份和还原配置文件以及加载新固件。 Perle致力于消除IP网络上所有IOLAN的配置麻烦。
灵活可靠的串行到以太网连接
IOLAN SCG控制台服务器非常适合将基于串行的COM端口，基于UDP或TCP套接字的应用程序连接到远程设备。 Perle的TruePort重定向器为基于串行的应用程序提供了固定的TTY或COM端口，从而能够以加密或明文模式与连接到Perle IOLAN的远程设备进行通信。
TrueSerial®数据包技术可通过以太网提供可靠的串行连接，以确保串行协议的完整性。
您还可以跨IP网络在设备之间建立串行数据隧道。
通过选择Perle IOLAN SCG控制台服务器，您可以放心，带有串行COM端口的设备都可以与所需的应用程序一起正常运行，就像直接连接该设备时一样。 万一Perle IOLAN设备服务器没有开箱即用，Perle将使其与客户可安装的设备插件一起使用。
IP技术
借助对IPv6的支持，IOLAN SCG为组织提供了投资保护，以符合这一快速增长的标准。
与IPv4寻址方案兼容的IPv6需求是由对更多IP地址的需求所驱动的。 随着高级蜂窝网络的实施和推出，需要一种可靠的方法来处理Internet上大量涌入的新IP可寻址设备。 实际上，美国国防部已强制要求所有购买的设备必须兼容IPv6。 此外，所有主要操作系统，例如Windows，Linux，Unix和Solaris，以及路由器，都对IPv6内置了支持。
因此，对于最终用户和集成商而言，选择包含IPv6标准的网络设备非常重要。 已内置支持IPv6的IOLAN线是串行到以太网技术的优佳选择。
使IOLAN SCSG控制台服务器成为选择的更多原因：
FIPS 140-2 –加密模块符合美国政府的NIST标准 群集–提供所有带外控制台端口的单一视图。 大型数据中心的理想选择 主/备份主机功能可在主TCP连接断开时自动连接到备用主机 EasyPort Web –使用支持Java的Internet浏览器访问设备串行控制台端口 无需Java的浏览器即可通过Telnet和SSH访问远程串行控制台端口 动态DNS –可以从Internet上的任何位置轻松访问控制台管理 带Perle远程电源开关的设备的智能电源循环 Ping看门狗探头使客户能够在网络设备无响应的情况下，通过连接的Perle RPS电源开关为设备重新通电
保修 所有Perle IOLAN SCG型号均以业内优佳的服务和支持为后盾，包括Perle独特的保修。 自1976年以来，Perle一直为客户提供性能，灵活性和质量高的网络产品。 使用Perle IOLAN SCG，可以在小资本支出的同时轻松地部署和升级新服务和设备。

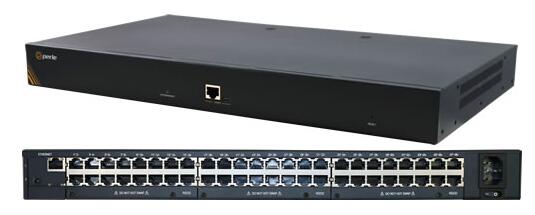

IOLAN SCG Secure Console ServerIn-Band and Out-of-Band IT Infrastructure Management16, 32 or 48 RS232 RJ45 Console Management Ports 10/100/1000Base-T Copper Network Connection Advanced AAA security and SSH/SSL encryption to meet all data center compliance policies
Hardware Specifications - IOLAN SCG Secure Console Server
| Processor | 1750 MIPS, 500 MHz core 32 bit ARM processor, with integrated hardware encryption processor | | Memory |
|---|
| RAM MB | 1000 | | Flash MB | 4000 | | Interface Ports |
|---|
| Integrated Device Management Ports | IOLAN SCG16: 16 x RS232 RJ45
IOLAN SCG32: 32 x RS232 RJ45
IOLAN SCG48: 48 x RS232 RJ45 | | Sun / Solaris | Sun / Oracle ‘Solaris' Safe - no "break signal" sent during
power cycle causing costly server re-boots or downtime | | Serial Port Speeds | 50bps to 230Kbps with customizable baud rate support | | Data Bits | Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data | | Parity | Odd, Even, Mark, Space, None | | Flow Control | Hardware, Software, Both, None | | Serial Port Protection | 15Kv Electrostatic Discharge Protection (ESD) | | Local Console Ports | 1 x RS232 RJ45
1 x Micro USB with DB9 adapter | | Network | 1 x 10/100/1000Base-T RJ45 Copper
Software selectable Ethernet speed 10/100/1000, Auto
Software selectable Half/Full/Auto duplex | | Ethernet Isolation | 1.5Kv Magnetic Isolation | | Power |
|---|
| Power Supply | AC power supply
USA Models: IEC320-C13 to NEMA 5-15P line cord
UK Models: IEC320-C13 to BS1363 line cord
EU Models: IEC320-C13 to CEE 7/7 Schuko
South Africa Models: IEC320-C13 to BS546 line cord
Australia Models: IEC320-C13 to AS3112 line cord | | Nominal Input Voltage | 110/230v AC | | Input Voltage Range | 100-240v AC | | AC Input Frequency | 47-63Hz | | Current Consumption @ 100v (Amps) | IOLAN SCG16: 0.14
IOLAN SCG32: 0.21
IOLAN SCG48: 0.28 | | Current Consumption @ 240v (Amps) | IOLAN SCG16: 0.06
IOLAN SCG32: 0.08
IOLAN SCG48: 0.11 | | Typical Power Consumption (Watts) | 14 Watts | | Power Line Protection | Fast transients: 1 KV (EN61000-4-4 Criteria B)
Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes) | | LED Indicators |
|---|
| System Ready
Network Link Activity | | Environmental Specifications |
|---|
| Heat Output (BTU/HR) | IOLAN SCG16: 47.77
IOLAN SCG32: 69.27
IOLAN SCG48: 91.45 | | MTBF ( Hours ) | 94,455 Calculation model based on MIL-HDBK-217-FN2 @ 30 °C | | Operating Temperature | 0°C to 55°C, 32°F to 131°F | | Storage Temperature | -40°C to 85°C, -40°F to 185°F | | Humidity | 5 to 95% (non condensing) for both storage and operation. | | Case | SECC Zinc plated sheet metal (1 mm) | | Ingress Protection Rating | IP30 | | Mounting | 1U - 19" rack, front and rear mounting hardware included | | Product Weight and Dimensions |
|---|
| Product Weight | IOLAN SCG16: 3.06 kg / 6.75 lbs
IOLAN SCG32: 3.23 kg / 7.12 lbs
IOLAN SCG48: 3.39 kg / 7.47 lbs | | Dimensions | 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) | | Packaging |
|---|
| Shipping Dimensions | 59 x 36 x 9cm | | Shipping Weight | IOLAN SCG16: 4.00 kg / 8.82 lbs
IOLAN SCG32: 4.17 kg / 9.20 lbs
IOLAN SCG48: 4.33 kg / 955 lbs | | Regulatory Approvals |
|---|
| Emissions | FCC 47 Part 15 Subpart B Class A
ICES-003 (Canada)
EN55011 (CISPR11)
EN55032 (CISPR32)
EN61000-3-2 Limits for Harmonic Current Emissions
EN61000-3-3 Limits of Voltage Fluctuations and Flicker
| | Immunity | EN55024
EN 61000-4-2 (ESD): Contact:
EN 61000-4-3 (RS):
EN 61000-4-4 (EFT):
EN 61000-4-5 (Surge):
EN 61000-4-6 (CS):
EN 61000-4-8 (PFMF)
EN 61000-4-11
| | Safety | UL/ULC/EN 62368-1 ( previously 60950-1 )
CAN/CSA C22.2 No. 62368-1-15 | | Other | Reach, RoHS and WEEE Compliant
CCATS - G168387
ECCN - 5A992
HTSUS Number: 8517.62.0020
Perle Limited Lifetime warranty
|
| IOLAN RJ45 Serial Connector Pinout - DTE mode (Rolled) |
|---|
RJ45 Socket | Pinout | Direction | EIA-232 |
|---|
| 1 | out | RTS | | 2 | out | DTR | | 3 | out | TxD | | 4 |
| GND | | 5 | in | DCD | | 6 | in | RxD | | 7 | in | DSR | | 8 | in | CTS | | (A rolled RJ45 cable will automatically perform DTE to DCE crossover) |
Software Features - IOLAN SCG Secure Console Server| Serial Port Access |
|---|
| Connect directly using Telnet / SSH by port and IP address | | Connect with EasyPort menu by Telnet / SSH | | Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu | | Java-free browser access to remote serial console ports via Telnet and SSH | | Ports can be assigned a specific IP address ( aliasing ) | | Multisession capability enables multiple users to access ports simultaneously | | Multihost access enables multiple hosts/servers to share serial ports | | Accessibility |
|---|
| In-band and out-of-band Ethernet via RJ45 copper (10/100/1000 Base-T) | | Dynamic DNS enables users to find a console server from anywhere on the Internet | | Domain name control through DHCP option 81 | | IPV6 and IPV4 addressing support | | Availability |
|---|
| Primary/Backup host functionality enables automatic connections to alternate host(s) | | Security |
|---|
| SSH v1 and v2 | | PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 | | SSL Server and SSL client mode capability | | SSL Peer authentication | | IPSec VPN : NAT Traversal, ESP authentication protocol | | SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305 | | SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | | Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | | Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | | Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | | X.509 Certificate verification: RSA, DSA | | Certificate authority (CA) list | | Local database | | RADIUS Authentication, Authorization and Accounting | | TACACS+ Authentication, Authorization and Accounting | | LDAP, NIS, Kerberos Authentication | | RSA SecureID-agent or via RADIUS Authentication | | SNMP v3 Authentication and Encryption support | | IP Address filtering | | Disable unused daemons | | Active Directory via LDAP | | Terminal Server |
|---|
| Telnet | | SSH v1 and v2 | | Rlogin | | Auto session login | | LPD, RCP printer | | MOTD - Message of the day | | Serial machine to Ethernet |
|---|
| Tunnel raw serial data across Ethernet - clear or encrypted | | Raw serial data over TCP/IP | | Raw serial data over UDP | | Serial data control of packetized data | | Share serial ports with multiple hosts/servers | | Virtual modem simulates a modem connection - assign IP address by AT phone number | | Virtual modem data can be sent over the Ethernet link with or without SSL encryption | | TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO HP UX, NCR UNIX and AIX. Perle supports the most comprehensive driver set in the industry. For a complete list of all the latest drivers click here | | TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity | | RFC 2217 standard for transport of serial data and RS232 control signals | | Customizable or fixed serial baud rates | | Plug-ins allow customer or Perle provided plug-ins for special applications | | Software Development Kit ( SDK ) available | | Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | | ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | | Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | | Console Management |
|---|
| Sun / Oracle Solaris Break Safe | | Local port buffer viewing - 256K bytes per port | | External port buffering via NFS, encrypted NFS and Syslog | | Event notification | | Manage AC power of external equipment using Perle RPS power management products | | Clustering - central console server enables access ports across multiple console servers | | Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | | Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear | | Remote Access |
|---|
| Dial, direct serial | PPP, PAP/CHAP, SLIP |
| HTTP tunneling enables firewall-safe access to remote serial devices across the internet | | Automatic DNS Update | Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details | | IPSEC VPN client/servers | Microsoft L2TP/IPSEC VPN client ( native to Windows XP) | | Microsoft IPSEC VPN Client ( native to Windows Vista ) | | Cisco routers with IPSEC VPN feature set | | Perle IOLAN SDS, SDG, STS, STG, SCS and SCG models | | OA&M ( Operations, Administration and Management ) |
|---|
| SNMP V3 - read and write, Perle MIB | | Syslog | | Perle Device Manager - Windows based utility for large scale deployments | | Configurable default configuration | | Installation Wizard | | Set a Personalized Factory Default for your IOLANs | | Protocols |
|---|
| IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP
|
产品订购型号信息：
| 图片 | 描述 | 电源线国别 | 产品料号 |
|---|
 | IOLAN SCG16 Console Server: 16 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 1 x auto-sensing 10/100/1000 RJ45 Ethernet Port, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, AC Power | USA | 04032654 | | UK | 04032651 | | EU | 04032652 | | SA | 04032655 | | AUS | 04032656 | | None | 04032658 | | IOLAN SCG32 Console Server: 32 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 1 x auto-sensing 10/100/1000 RJ45 Ethernet Port, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, AC Power | USA | 04032674 | | UK | 04032671 | | EU | 04032672 | | SA | 04032675 | | AUS | 04032676 | | None | 04032678 | | IOLAN SCG48 Console Server: 48 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 1 x auto-sensing 10/100/1000 RJ45 Ethernet Port, Micro USB and RS232 RJ45 Console Admin Ports, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, AC Power | USA | 04032684 | | UK | 04032681 | | EU | 04032682 | | SA | 04032685 | | AUS | 04032686 | | None | 04032688 |
|
