能够满足需要低成本高效率串行至以太网连接解决方案的电力设施工程师和项目经理的要求（这些工程师必须考虑 IOLAN SDS HV / LDC 机架终端设备服务器），符合NERC-CIP，并且能够保护变电站中的关键电网资产。 除了能够提供全面的安全功能以外，IOLAN 的设计还能够满足严酷环境下与变电站相关的各种属性要求，这些属性包括对高电压交直流电源和高温工作环境的支持，符合与变电站 IT 设备相关的辐射、抗辐射和安全要求。 非常适合为什么 IOLAN SDS HV / LDC 型号是优佳选择：满足 NERC CIP 的特性 用于集中授权、认证和记帐的 TACACS+ 和 RADIUS 支持备选的 TACACS+ 和 RADIUS 主机 RSA 的 SecureID 等双因素强验证 HTTPS、SSL/TLS、SSH（AES、3DES）会话加密 按键动作和数据日志 提供了可在用户访问时显示的定制“适宜使用”登录标志 安全拨号 仅启用需要的串行端口
符合 IEC 61850-3 和 IEEE 1613 (IEEE C37 90) 变电站 EMI 标准 通用高电压：88-300 伏直流或 85-265 伏交流 – 可提供双电型号 双馈低电压：18 – 72 伏直流 Cisco RJ45 串行端口针脚设计能够使用常用的串行“卷绕”五类布线连接到 Cisco/Sun 控制台端口 Modbus TCP 到 Modbus RTU/ASCII 网关 基于 IP 的封装 ModBus 和 DNP 协议 高性能 400 Mhz，750 MIPS 的 32 位处理器，集成了硬件加密处理器，可获得的优佳吞吐量 下一代 IP 支持 (IPv6 ) 提供投资保护和网络兼容性 TrueSerial™ 数据包交换技术 — 可靠的跨以太网串行连接确保串行协议的完整性 一旦主 TCP 连接失败，主/备份的主机功能够自动连接到备用主机 一旦主 TCP 连接失败，主/备份的主机功能够自动连接到备用主机 EasyPort Web – 使用支持 java 的因特网浏览器来访问设备串行控制端口 TruePort – Perle 的 com/tty 转向器，特别适用于 Windows、Vista、Linux、Solaris、SCO 和 Unixideal 上运行的串行 SCADA 应用 Java-free browser access to remote serial console ports via Telnet and SSH 保修 — 提供优佳的投资保护

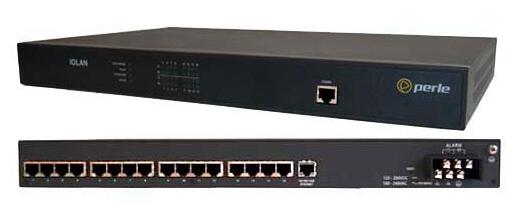

IOLAN 电力设施终端设备服务器NERC CIP Electric Utility Terminal ServerRJ45 上的 8、16 和 32 个串行端口 – 可 通过软件选择的 RS232/422/485 A高级安全功能，适用于 NERC CIP 关键电网资产变电站 加固后能够满足恶劣环境下电力设施和工业应用的变电站 通用高压供电：标称值125 伏直流 / 250 伏直流或 115 伏交流 / 230伏交流 双馈低压供电：标称值：24 伏直流 / 48 伏直流 10/100/1000以太网 内置式故障恢复警报继电器
Hardware Specifications - IOLAN SDSC HV Terminal Servers
| SDS8C HV | SDS8C DHV | SDS16C HV | SDS16C DHV | SDS32C HV | SDS32C DHV |
|---|
| Processor | MPC8349E, 400 Mhz, 750 MIPS | | Memory |
|---|
| RAM MB | 64 | 64 | 64 | 64 | 128 | 128 | | Flash MB | 16 | 16 | 16 | 16 | 16 | 16 | | Interface Ports |
|---|
| Number of Serial Ports | 8 | 8 | 16 | 16 | 32 | 32 | | Serial Port Interface | Software selectable RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex | | Sun / Solaris | Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime | | Serial Port Speeds | 50bps to 230Kbps with customizable baud rate support | | Data Bits | Configurable for 5,6,7 or 8-bit protocol support
Use TruePort to transparently pass 9-bit serial data | | Parity | Odd, Even, Mark, Space, None | | Flow Control | Hardware, Software, Both, None | | Local Console Port | RS232 on RJ45 with DB9 adapter (provided) | | Network | Dual 10/100/1000-base TX Ethernet RJ45 | | Software selectable Ethernet speed 10/100/1000, Auto | | Software selectable Half/Full/Auto duplex | | Failsafe Alarm Relay | 3A@24v DC. Normally open contacts closed by IOLAN when active and opened upon alarm condition or power failure | | Power |
|---|
| Dual Power Supply | Terminal Block with screw terminals accommodating a #6 ring terminal for each power source. Protective cover provided | | Nominal Input Voltage | 125V DC / 250V DC or 100V AC / 240V AC | | Input Voltage Range | 88-300V DC or 85-265V AC | | AC Input Frequency | 47-63Hz | | Current Consumption @ 125v DC (Amps) | 0.06 | 0.07 | 0.08 | 0.08 | 0.13 | 0.13 | | Current Consumption @ 250v DC (Amps) | 0.04 | 0.04 | 0.05 | 0.05 | 0.07 | 0.07 | | Current Consumption @ 115v AC (Amps) | 0.13 | 0.15 | 0.07 | 0.2 | 0.26 | 0.28 | | Current Consumption @ 230v AC (Amps) | 0.09 | 0.11 | 0.12 | 0.14 | 0.16 | 0.19 | | Typical Power Consumption (Watts) | 9 | 10 | 12 | 12.5 | 17 | 17.5 | | Chassis Ground | Grounding screw for a #10 ring terminal | | Indicators |
|---|
| LEDs | Power | | System Ready | | Network Link activity | | Serial: Transmit and Receive data per port | | Environmental Specifications |
|---|
| Heat Output (BTU/HR) | 30.7 | 34.12 | 40.9 | 42.7 | 58 | 59.7 | | MTBF (Hours) | 144,323 | 126,121 | 117,779 | 105,368 | 89,711 | 82,325 | Calculation model based on MIL-HDBK-217-FN2 @ 30 °C | | Operating Temperature | -40&C ambient for 16 hours and +70C ambient for 16 hours without use of fans | | Storage Temperature | -40&C to 85&C, -40&F to 185&F | | Humidity | 5 to 95% (non condensing) for both storage and operation. | | Case | SECC Zinc plated sheet metal (1 mm) | | Ingress Protection Rating | IP30 | | Mounting | 1U - 19" rack, front and rear mounting hardware included.
DIN Rail mounting kit optional | | Product Weight and Dimensions |
|---|
| Weight | 3.20 kg | 3.38 kg | 3.22 kg | 3.40 kg | 3.40 kg | 3.58 kg | | Dimensions | 1U Rack form factor - 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) | | Packaging |
|---|
| Shipping Dimensions | 59 x 36 x 9 (cm), 23 x 14 x 3.5 (in) | | Shipping Weight | 4.00 kg | 4.18 kg | 4.20 kg | 4.20 kg | 4.20 kg | 4.38 kg | | Regulatory Approvals |
|---|
| Emissions | Power Line conducted: IEC 61850-3 Sec 5.8, IEC 61000-6-4, CISPR 16-2-3, CISPR 22,
FCC Part 15, Subpart B, Class B | | Telecom Line conducted: IEC 61000-6-4, CISPR 22 | | Radiated: IEC 61850-3 Sec 5.8, IEC 61000-6-4, CISPR 16-2-3, CISPR 22, FCC Part 15, Subpart B, Class B | | IEC61000-3-2 Harmonic Current Emissions | | IEC61000-3-3 Flicker emissions | | EMC Interface Immunity | IEC 61850-3 (substations)
IEEE 1613 (substations) (C37.90.x)
Applies to all ports, signal and power connections | | ESD: IEC61000-4-2, 8Kv Contact / 15Kv Air | | Radiated RFI: IEC61000-4-3, 20 V/m (80M-1G) | | Fast Transients / Burst: IEC61000-4-4, 4Kv Mains , I/O | Surge : IEC61000-4-5
4Kv AC line to Gnd, 2Kv AC Line to Line,
2Kv DC line to Gnd, 1 Kv DC Line to Line,
RS232 = balanced, ethernet = unbalanced | | Conducted RF: IEC61000-4-6, 10 Vrms | | Magnetic Field: IEC61000-4-8, 100 A/m, 1000 A/m (1 sec) | | Dips and Interrupts: IEC61000-4-11, Criteria A/B/C | | Oscillatory: EN61000-4-12, 2.5Kv common and differential mode | | Low Frequency conducted: EN61000-4-16, 30V 60s, 300V 1s,15Hz-150KHz @ level 3 | | Standard Safety Certifications | IEC 60950-1, First Edition (2001-10) and EN60950-1:2001, CB scheme. | CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,
First Edition April 1st 2003 (Recognized Component) | | Other | Reach, RoHS and WEEE Compliant | | CCATS - G168387 | | ECCN - 5A992 | | HTSUS Number: 8517.62.0020 | | Perle Lifetime Warranty |
Software Feature - IOLAN SDSC Terminal Servers| Serial Port Access |
|---|
| Connect directly using Telnet / SSH by port and IP address | | Connect with EasyPort menu by Telnet / SSH | | Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu | | Java-free browser access to remote serial console ports via Telnet and SSH | | Ports can be assigned a specific IP address ( aliasing ) | | Multisession capability enables multiple users to access ports simultaneously | | Multihost access enables multiple hosts/servers to share serial ports | | Accessibility |
|---|
| In-band ( Ethernet ) and out-of-band ( dial-up modem ) support | | Dynamic DNS enables users to find a console server from anywhere on the Internet | | Domain name control through DHCP option 81 | | IPV6 and IPV4 addressing support | | Availability |
|---|
| Primary/Backup host functionality enables automatic connections to alternate host(s) | | Security |
|---|
| SSH v1 and v2 | | PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 | | SSL Server and SSL client mode capability | | SSL Peer authentication | | IPSec VPN : NAT Traversal, ESP authentication protocol | | SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305 | | SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | | Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | | Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | | Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | | X.509 Certificate verification: RSA, DSA | | Certificate authority (CA) list | | Local database | | RADIUS Authentication, Authorization and Accounting | | TACACS+ Authentication, Authorization and Accounting | | LDAP, NIS, Kerberos Authentication | | RSA SecureID-agent or via RADIUS Authentication | | SNMP v3 Authentication and Encryption support | | IP Address filtering | | Disable unused daemons | | Active Directory via LDAP | | Terminal Server |
|---|
| Telnet | | SSH v1 and v2 | | Rlogin | | Auto session login | | LPD, RCP printer | | MOTD - Message of the day | | Serial machine to Ethernet |
|---|
| Tunnel raw serial data across Ethernet - clear or encrypted | | Raw serial data over TCP/IP | | Raw serial data over UDP | | Serial data control of packetized data | | Share serial ports with multiple hosts/servers | | Virtual modem simulates a modem connection - assign IP address by AT phone number | | Virtual modem data can be sent over the Ethernet link with or without SSL encryption | | TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here | | TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity | | RFC 2217 standard for transport of serial data and RS232 control signals | | Customizable or fixed serial baud rates | | Plug-ins allow customer or Perle provided plug-ins for special applications | | Software Development Kit ( SDK ) available | | Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | | ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | | Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | | Console Management |
|---|
| Sun / Oracle Solaris Break Safe | | Local port buffer viewing - 256K bytes per port | | External port buffering via NFS, encrypted NFS and Syslog | | Event notification | | Manage AC power of external equipment using Perle RPS power management products | | Clustering - central console server enables access ports across multiple console servers | | Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | | Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear | | Remote Access |
|---|
| Dial, direct serial | PPP, PAP/CHAP, SLIP |
| HTTP tunneling enables firewall-safe access to remote serial devices across the internet | | Automatic DNS Update | Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details | | IPSEC VPN client/servers | Microsoft L2TP/IPSEC VPN client ( native to Windows XP) | | Microsoft IPSEC VPN Client ( native to Windows Vista ) | | Cisco routers with IPSEC VPN feature set | | Perle IOLAN SDS/STS and SCS models | | OA&M ( Operations, Administration and Management ) |
|---|
| SNMP V3 - read and write, Perle MIB | | Syslog | | Perle Device Manager - Windows based utility for large scale deployments | | Configurable default configuration | | Installation Wizard | | Set a Personalized Factory Default for your IOLANs | | Protocols |
|---|
| IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP |
应用方案一：
应用方案二：
产品订购信息：
| 图片 | 描述 | 电源线国别 | 产品料号 |
|---|
 | IOLAN SDS8C LDC Utility Terminal Server - 8 x RJ45 serial ports, 24/48 VDC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard, NEBS Level 3 Certified | None | 04032420 |  | IOLAN SDS8C HV Utility Terminal Server - 8 x RJ45 serial ports, Universal High Voltage AC/DC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard | None | 04032400 |  | IOLAN SDS8C DHV Utility Terminal Server - 8 x RJ45 serial ports, Dual Universal High Voltage AC/DC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard | None | 04032410 |  | IOLAN SDS16C LDC Utility Terminal Server - 16 x RJ45 serial ports, 24/48 VDC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard, NEBS Level 3 Certified | None | 04032430 |  | IOLAN SDS16C HV Utility Terminal Server - 16 x RJ45 serial ports, Universal High Voltage AC/DC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard | None | 04032450 |  | IOLAN SDS16C DHV Utility Terminal Server - 16 x RJ45 serial ports, Dual Universal High Voltage AC/DC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard | None | 04032440 |  | IOLAN SDS32C LDC Utility Terminal Server - 32 x RJ45 serial ports, 24/48 VDC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard, NEBS Level 3 Certified | None | 04032520 | | IOLAN SDS32C HV Utility Terminal Server - 32 x RJ45 serial ports, Universal High Voltage AC/DC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard | None | 04032500 |  | IOLAN SDS32C DHV Utility Terminal Server - 32 x RJ45 serial ports, Dual Universal High Voltage AC/DC power, 2x 10/100/1000 Ethernet, 1U rack mount, Software selectable RS232/422/485 interface, Cisco/Sun Rj45 pinout, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard | None | 04032510 |
|
