PoE工业以太网交换机

简介： 高级交换，VLAN，加密和IEEE 1588 PTP 支持PoE / PoE + PSE的端口，完全符合IEEE 802.3af / at 数字输入可生成警报 PROFINET和Modbus TCP协议支持
类型： PoE工业以太网交换机
品牌： Perle
型号： IDS-710HP、IDS-509、IDS-108、IDS-105、S-1110HP、S-1110P
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购

PoE工业以太网交换机


除了传输网络数据外，PoE交换机还具有内置的以太网电源注入器，可为基于802.3af、802.3at和802.3bt标准的设备（如IP摄像机、VoIP电话和无线接入点）提供高达100W的以太网电源（PoE）。在连接网络设备时，交换机将检测它们是否与POE兼容并自动供电。使用PoE交换机，无需安装多个设备、额外的电线和插座，从而节省了安装和维护成本。


Perle PoE交换机属于第二层电源设备（PSE）。Perle-IDS PoE交换机的工业设计和所有内部组件使其非常适合在恶劣环境中使用，这些环境会受到振动、从-40℃到75℃的极端温度波动以及以下冲击：

  • 工业和工厂自动化

  • 室外应用

  • 铁路和智能交通系统（ITSs），

  • 海的

  • 石油与天然气

  • 开采

Perle IDS管理交换机具有企业级功能，包括PROFINET和Modbus TCP协议支持、MRP IEC 62439-2环协议（恢复时间<10ms）、STP/RSTP/MSTP、IGMP侦听、QoS、VLAN、TACACS+、RADIUS、IEEE 802.1X，身份验证、SSH、SNMPv3、HTTPS和IEEE 1588 PTP。


IDS-710HP Managed Industrial Ethernet Switch

10-port PoE (100W) Gigabit Switch

IDS-710 Industrial Ethernet Switch

  • 8 x 10/100/1000Mbps PoE 802.3bt Ethernet Ports with 450W of available power

  • 2 x SFP Slots supporting 1G/2.5G Fiber or 10/100/1000Base-T

  • PROFINET and Modbus TCP protocols supported for monitoring and device management

  • Ring Protocol MRP (IEC 62439-2) has <10ms recovery time

  • STP/RSTP/MSTP for network redundancy

  • Advanced Security and IT management features: TACACS+, RADIUS, 802.1x, SSH, SNMPv3, and HTTPS

  • IEEE 1588 V1 and V2 PTP for microsecond accuracy

  • Advanced protocols to optimize the performance and intelligence of the network:   IGMP Snooping, LLDP-MED, GVRP, Voice VLANs, MSTP, GMRP, and IPv6 MLD Snooping


IDS-509PP – Managed Industrial PoE+ Switch

Industrial 9 Port Managed Ethernet Switch

IDS-509PP – Managed Industrial PoE+ Switch

  • 9 port 10/100/1000Base-T for Gigabit and Fast Ethernet devices

  • Advanced switching, VLAN, encryption and IEEE 1588 PTP

  • PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at

  • Digital inputs for generation of alerts

  • PROFINET and Modbus TCP Protocol Support

  • Compact, corrosion resistant case attaches to a standard DIN Rail

  • Redundant dual power input 48 VDC

  • Programmable Controller safety and Hazardous Location Certification

  • -40 to 75C industrial operating temperature


IDS-108FPP – Industrial PoE Switch

8 to 10 port Compact DIN Rail PoE Switch

20201219

  • 8 port 10/100Base-TX ( RJ45 )

  • 8 port 10/100Base-TX ( RJ45 ) plus 1 or 2 SC/ST fiber ports

  • 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at

  • Hazardous Location and Industrial Control Equipment Certification

  • Corrosion resistant IP30 aluminum case

  • Redundant dual power input 24/48 VDC

  • Overload current and reverse polarity protection

  • Industrial operating temperature support up to -40 to 75C



IDS-105GPP – Industrial Gigabit PoE Switch

5 to 7 port Compact DIN Rail PoE Switch

5 Port Industrial Gigabit PoE Switch

  • 5 port 10/100/1000Base-T ( RJ45 )

  • 5 port 10/100/1000Base-T ( RJ45 ) with 1 or 2 Gigabit fiber ports (SC/ST/SFP)

  • 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at

  • Hazardous Location and Industrial Control Equipment Certification

  • Corrosion resistant IP30 aluminum case

  • Redundant dual power input 24/48 VDC

  • Overload current and reverse polarity protection

  • Industrial operating temperature support up to -40 to 75C


S-1110HP-SFP-XT Hi-PoE Media Converters

IEEE 802.3bt Compliant PoE & Fiber Media Conversion

Hi-PoE SFP Media Converter

  • 10/100/1000Base-T to 100/1000Base-X Fiber

  • 1 or 2 empty slots for Cisco and other industry standard SFPs

  • Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power

  • Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices

  • Dual or Single 10/100/1000Base-T PoE ports

  • Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback

  • -40°F to +167°F (-40°C to +75°C) extended operating temperature


S-1110 PoE Media and Rate Converters

PoE / PoE+ Ethernet to Fiber Conversion

PoE Media Converter

  • 10/100/1000Base-T to 100/1000Base-X Fiber

  • Supplies IEEE 802.3 PoE & PoE+ PSE power

  • Compatible with legacy pre-standard PoE devices

  • Multiport models: 2, 3 or 4 ports

  • Fix fiber ports or empty slot for Cisco and other industry standard SFPs

  • Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert, Auto-MDIX and Loopback

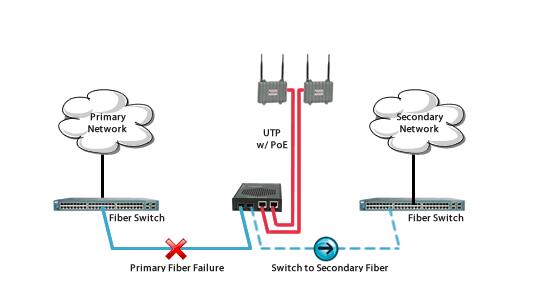

方案应用一：

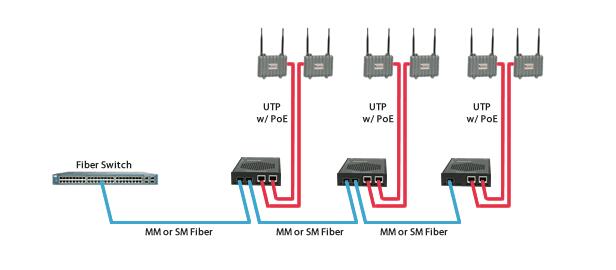

方案应用二：

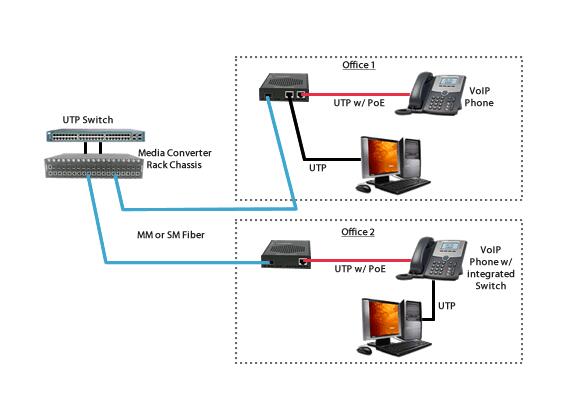

方案应用三：



方案应用四：



产品订购信息


DescriptionPower CordProduct Part Number
20201219IDS-509PP8 - Industrial Managed Power over Ethernet Switch - 9 ports: 9 x 10/100/1000Base-T RJ-45 ports, 8 of which are PoE/PoE+ capable. -10 to 60C operating temperature. PRO software feature set.None
07016370
IDS-509PP8-XT - Industrial Managed Power over Ethernet Switch - 9 ports: 9 x 10/100/1000Base-T RJ-45 ports, 8 of which are PoE/PoE+ capable. -40 to 75C operating temperature. PRO software feature set.None
07016380




DescriptionPower CordProduct Part Number
07017270IDS-710HP - Industrial Managed Ethernet Switch with 10 ports: 8 x 10/100/1000Base-T RJ-45 Hi-PoE (IEEE 802.3bt for 100W PoE) ports and 2 x SFP slots (supports 10/100/1000 on Copper & 1G/2.5G on Fiber). -10 to 60C operating temperature. PRO software feature set.None
07017270
IDS-710HP-XT - Industrial Managed Ethernet Switch with 10 ports: 8 x 10/100/1000Base-T RJ-45 Hi-PoE (IEEE 802.3bt for 100W PoE) ports and 2 x SFP slots (supports 10/100/1000 on Copper & 1G/2.5G on Fiber). -40 to 75C operating temperature. PRO software feature set.None
07017280



Models with 8 x 10/100/1000Base-T (RJ45) Connectors

20201219
Choose your Fiber Connections from the table below
100Base-X Duplex Fiber

Fiber
Connector
Transmit
(dBm)
Receive
(dBm)
Power
Budget
(dB)
Wavelength
(nm)
Fiber
Type
Operating
Distance

Min
Max
Min
Max

IDS-108FPP-XT
NO Fiber Connection

IDS-108FPP-M2SC2-XT1 x Duplex SC-20.0-12.0-31.0-14.011.0*1310MMF5 km*
(3.1 mi)



Operating Temperature (Std) = 0° C to 60° C (32° F to 140° F).
All Models have 5 x 10/100/1000Base-T (RJ45) Connectors

20201219

Choose your Fiber Connection from the table below
1000Base-X Duplex Fiber

Fiber
Connector

Transmit
(dBm)

Receive
(dBm)

Power
Budget
(dB)

Wavelength
(nm)

Fiber
Type

Operating
Distance

Min

Max

Min

Max

IDS-105GPP

No Fiber connection

IDS-105GPP-SFP1 x SFP slot (empty)Fiber specifications are dependent upon the choice of SFP used
IDS-105GPP-DSFP2 x SFP slot (empty)Fiber specifications are dependent upon the choice of SFP used




DescriptionPower CordProduct Part Number
05079900S-1110HP-SFP-XT - Gigabit Industrial Temperature Media and Rate Converter with Type 4 High-Power PoE PSE (up to 100W/port): 10/100/1000Base-T (RJ45) [100 m/328 ft] to 1000Base-X or 100Base-X - SFP Slot (empty). -40F to +167F (-40C to +75C) operating temperature support. Terminal block power connector for external power sourceNone
05079900
05079320S-1110HP-DSFP-XT - Gigabit Industrial Temperature Media and Rate Converter with Type 4 High-Power PoE PSE (up to 100W/port): 10/100/1000Base-T (RJ45) [100 m/328 ft] to 1000Base-X or 100Base-X. Dual SFP Slots (empty). -40F to +167F (-40C to +75C) operating temperature support. Terminal block power connector for external power sourceNone
05079320
05079330S-1110DHP-SFP-XT - Gigabit Industrial Temperature Media and Rate Converter with Type 4 High-Power PoE PSE (up to 100W/port): Dual 10/100/1000Base-T (RJ45) [100 m/328 ft] to 1000Base-X or 100Base-X - SFP Slot (empty). -40F to +167F (-40C to +75C) operating temperature support. Terminal block power connector for external power sourceNone
05079330
05079970S-1110DHP-DSFP-XT - Gigabit Industrial Temperature Media and Rate Converter with Type 4 High-Power PoE PSE (up to 100W/port): Dual 10/100/1000Base-T (RJ45) [100 m/328 ft] to 1000Base-X or 100Base-X. Dual SFP Slots (empty). -40F to +167F (-40C to +75C) operating temperature support. Terminal block power connector for external power sourceNone
05079970



Select a Model to obtain a Part Number - 10/100/1000 PoE

Model
# PoE
ports
Fiber Port
Connector
Type
Transmit
(dBm)
Receive
(dBm)
Power
Budget
(dBm)
Wavelength
(nm)
Fiber
Type
Core
Size
(um)
Modal
Bandwidth
(MHz*Km)
Operating
Distance
Min
Max
Min
Max
S-1110P-SFP1
1 x SFP / LC
1000Base-X
/100Base-X
------
MMF
/SMF
-
-
-
S-1110P-DSFP1
2 x SFP / LC
1000Base-X
/100Base-X
------
MMF
/SMF
-
-
-
S-1110P-M2SC051
Dual SC
1000Base-SX
-9.5
-4.0
-17
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)



Select a Model to obtain a Part Number - 10/100/1000 PoE+

Model
# PoE
ports
Fiber Port
Connector
Type
Transmit
(dBm)
Receive
(dBm)
Power
Budget
(dBm)
Wavelength
(nm)
Fiber
Type
Core
Size
(um)
Modal
Bandwidth
(MHz*Km)
Operating
Distance
Min
Max
Min
Max
S-1110PP-SFP1
1 x SFP/LC
1000Base-X
/100Base-X
------
MMF
/SMF
---
S-1110PP-DSFP1
2 x SFP/LC
1000Base-X
/100Base-X
------
MMF
/SMF
---
S-1110PP-M2SC051
Dual SC
1000Base-SX
-9.5
-4.0
-17
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
S-1110PP-M2ST051
Dual ST
1000Base-SX
-9.5
-4.0
-17
-3.0
7.5
850
MMF
62.5
160
220 m
(722 ft)
62.5
200
275 m
(902 ft)
50
400
500 m
(1,640 ft)
50
500
550 m
(1,804 ft)
50
2000
1000 m
(3281 ft)
