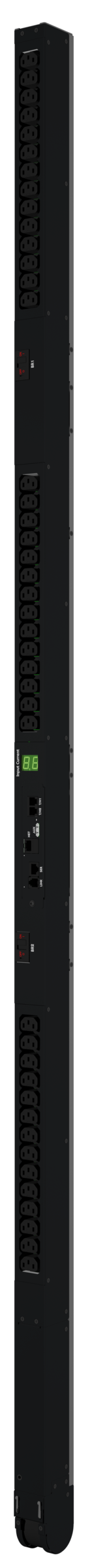

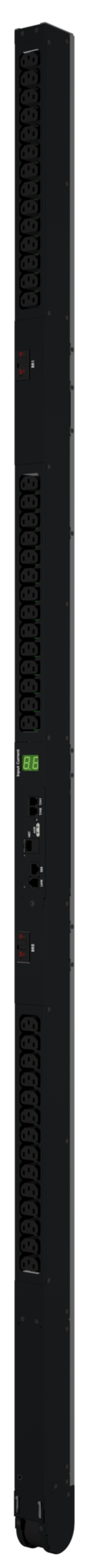

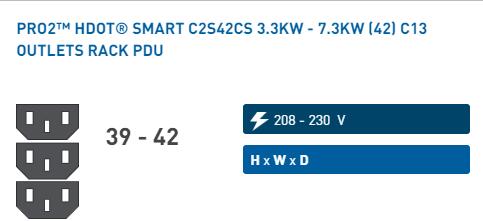

PRO2™ HDOT® Smart C2S42CS 3.3kW - 7.3kW (42) C13 outlets Rack PDU | | Key Features |  | NETWORK MONITORING The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more. |  | HOT-SWAP NETWORK CARD Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit. |  | STAR MULTI-LINKING PRO2 provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card. |
|
|
|
|
|
|  | TEMPERATURE/HUMIDITY MONITORING PRO2 Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications. |  | AUTO-FLIP CURRENT DISPLAY Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets. |  | PER-INLET POWER SENSING Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy. |
|
|
|
|
|
|  | HIGH-DENSITY OUTLET TECHNOLOGY The highest outlet density available in a network connected PDU. Meets IEC C13 and C19 specifications, plus high native retention and UL94V-0 flame rating. |  | HIGH RETENTION LOCKING OUTLETS PRO2 receptacles have high retention and are compatible with P-Lock type power cords. |  | HIGH TEMPERATURE RATING This product has been tested and approved for safe and reliable operation in 60°C (140°F) data center environments. |
|
|
|
|
|
|  | FLEXIBLE MOUNTING PRO2 includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details). |  | COLOR IDENTIFICATION Choose from six colors to designate circuits for rack PDUs in the data center. Color options include Blue, Red, Green, White, Yellow, and Black. |
|
|
| Family Description | | The Server Technology® PRO2 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
|
|
|  | Family Specifications |
| Branch Monitoring:Current (A) Branch Overcurrent Protection:5 kAIC Branch Overcurrent Protection Type:Circuit Breaker: 2-pole Dual Input:No High Retention Outlets:Yes Input Current Display:Auto-Orient Input Monitoring:PIPS Locking Outlets:Yes Max Operating Temperature:65 °C Fast Movers:No Mounting:0U Vertical Outlet Monitoring:None PDU Platform:Pro2 | Power Pivot Input:Yes Product Height (inch):69.0 Product Height (mm):1753 Product Max Depth (inch):2.25 Product Max Depth (mm):58 Product Nominal Depth (inch):2.25 Product Nominal Depth (mm):58 Product Width (inch):1.75 Product Width (mm):45 |
|
| | Model No. |

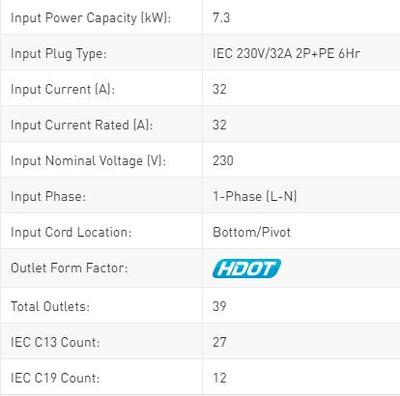

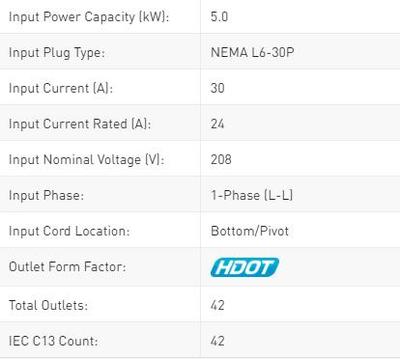

| | C2S39CS-EPBA2S444 (SMART) | C2S42CS-EPBA2S000 (SMART) |  |  |
|
| | C2S39CS-2CBA2S444 (SMART) | C2S42CS-2CBA2S000 (SMART) |  |  |
|
| | C2S39TS-2CBA2S444 (SMART) | C2S39TS-EPBA2S444 (SMART) |  | |
|
|
You’re viewing Server Technology’s family of Smart PDUs. Easy to use and access, Smart PDUs from Server Technology offer input current monitors on easy-to-view LED via network or serial connection. These PDUs feature branch circuit protection and are available in a variety of voltages, amperages. Available in single- and three-phase.
Our Smart PDUs are guaranteed secure and feature external authentication and authorization support, while SNMP traps provide automated alerts surrounding each outlet’s power and environmental conditions. Optional temperature and humidity probes, with 10 ft. cords, offer flexibility in terms of sensor placement.
Other Server Technology Smart PDU features include: Simple to use, easy to access, secure, integral HTML Web GUI over HTTP/S, plus LDAP/S and TACACS+ external authentication and authorization support SNMP traps for automated alerts related to power and environmental conditions. Also features event notification via Syslog and email Three-Phase products sport a separate LED for each phase for easier load balancing Branch Circuit Protection
Available in 120/208/230/400/415 V, 16A/20/30/32/60/63A, single-phase and three-phase.
|
