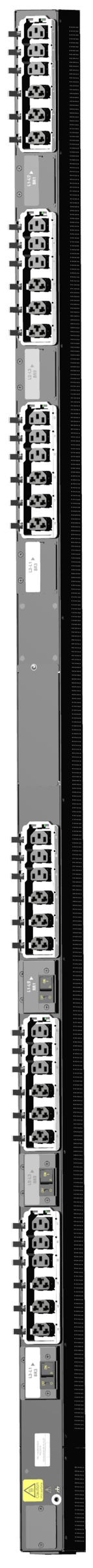

PRO3X Basic C3B36RL 11kW – 22kW (18) C13 outlets & (18) Cx outlets Rack PDU |
| Key Features |  | HDOT CX Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs. | | RAMLOCK LOCKING OUTLETS Receptacles have high retention and are compatible with P-Lock type power cords. |  | BRANCH CIRCUIT PROTECTION This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses. |
|
|
|
|
|
|  | HIGH TEMPERATURE RATING This product has been tested and approved for safe and reliable operation in 60 °C data center environments. |  | FLEXIBLE MOUNTING Includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details). |
|
|
| Family Description | | This all new Server Technology Basic PDU features RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords along with HDOT Cx, a hybrid C13/C19 outlet that accepts either an IEC C14 or C20 plug. The PDU features dedicated HDOT C13 outlets and HDOT Cx which can be treated as either a C13 or C19 outlet. |
|  | Family Specifications | | Branch Monitoring:None | None | Power Pivot Input: | No | | Branch Overcurrent Protection: [NorthAmerica]/[5kAIC ROW] | 10 kAIC
| Product Height (inch): | 70.0 | | Branch Overcurrent Protection Type: | Circuit Breaker: 1-pole | Product Height (mm): | 1778 | Dual Input:
| No | Product Max Depth (inch)： | 3.19 | | High Retention Outlets: | Yes | Product Max Depth (mm): | 82 | | Input Current Display: | None | Product Nominal Depth (inch): | 2.5 | | Input Monitoring: | None | Product Nominal Depth (mm): | 64 | | Locking Outlets: | Yes | Product Width (inch): | 2.2 | | Max Operating Temperature: | 60 °C | Product Width (mm): | 56 | | Fast Movers: | No |
|
| | Mounting: | 0U Vertical |
|
| | Outlet Monitoring: | None |
|
| | PDU Platform: | PRO3X |
|
|
|
|
|
| | Product Specifications |
| | C3B36RL-GPJE0AT2 (BASIC) | C3B36RL-5CJE0AT2 (BASIC) | | DOWNLOAD DATASHEET | DOWNLOAD DATASHEET | | Input Power Capacity [Kw] | 17.3 | Input Power Capacity [Kw] | 17.3 | | Input Plug Type: | 230/400 32A& 240/415V Wye 30A IEC 60309 3P+N+G 6Hr | Input Plug Type: | NAMA L22-30P | | Input Current【A] | 30 | Input Current【A] | 30 | | Input Current Rated【A】 | 24 | Input Current Rated【A】 | 24 | | Input Nominal Voltage【V] | 415 | Input Nominal Voltage【V] | 415 | | Input Phase: | 3-Phase Wye [L-N] | Input Phase: | 3-Phase Wye [L-N] | | Input Cord Location: | Bottom/End | Input Cord Location: | Bottom/End | | Lutlet Form Factor: | HODT Cx | Lutlet Form Factor: | HODT Cx | | Total Outlets: | 36 | Total Outlets: | 36 | | IEC C13 Count: | 18 | IEC C13 Count: | 18 | | Cx Count: | 18 | Cx Count: | 18 |
|
|
|
| | C3B36RL-GPJE0AT2 (BASIC) |
|
| | DOWNLOAD DATASHEET |
|
| | Input Power Capacity [Kw] | 11.5 |
|
| | Input Plug Type: | 230/400 16A& 240/415V Wye 20A IEC 60309 3P+N+G 6Hr |
|
| | Input Current【A] | 20 |
|
| | Input Current Rated【A】 | 16 |
|
| | Input Nominal Voltage【V] | 415 |
|
| | Input Phase: | 3-Phase Wye [L-N] |
|
| | Input Cord Location: | Bottom/End |
|
| | Lutlet Form Factor: | HODT Cx |
|
| | Total Outlets: | 36 |
|
| | IEC C13 Count: | 18 |
|
| | Cx Count: | 18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Basic PDU
You’re viewing Server Technology’s family of Basic PDUs. These PDU’s from Server Technology meet IEC data center requirements. Optional flexible mounting and color identification features are available. Server Technology’s Basic PDUs provide reliable power distribution for all devices in your equipment cabinet and ranges in power from 2kW-6kW per cabinet. Basic PDUs are available in single-phase 110-120V or 208-240V power distribution with 20A or 30A options and 3-Phase power distribution with 20Aand 30A options. Learn more about Server Technology’s basic PDUs with Zero-U Vertical Enclosures and shop from dozens of variations on our basic PDUs
DescriptionThis all new Server Technology Basic PDU features RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords along with HDOT Cx, a hybrid C13/C19 outlet that accepts either an IEC C14 or C20 plug. The PDU features dedicated HDOT C13 outlets and HDOT Cx which can be treated as either a C13 or C19 outlet.
Inputs | Input Voltage (V): | 415 | | Input Plug: | NEMA L22-30P | | Input Current (A): | 30 | | Input Current Rated (A): | 24 | | Input Power Capacity (kW): | 17.3 |
|
| | Outputs |
| | (18) x IEC 60320/C13 | North American Rating: ≤ 12A @208V L-L (15A Peak) | | (18) x Cx | North American Rating: ≤ 16A @208V L-L (20A Peak) |
Branch Circuit ProtectionUL489 Compliant 1-pole, 20A trip circuit breakers, six (6) branch, rating: ≤ 16A, 10 kAIC (North America) / (5 kAIC ROW) Interrupt Rating
PhysicalDimensions: 70.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm]
EnvironmentalOperating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations
Communications & SecurityNot Applicable
CertificationsNorth American:
Safety (TUVR certified, cTUVus mark)Measurement AccuracyInput Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.25 amp)
|
