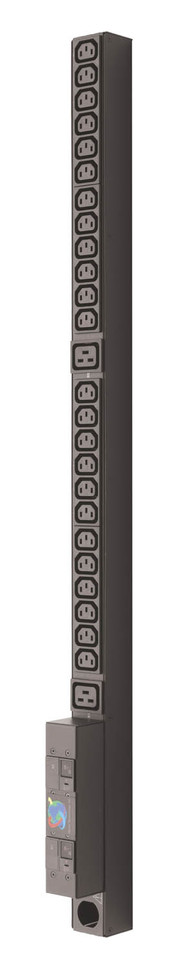

Basic CB-26VE 3.3kW - 7.3kW (24) C13 & (2) C19 outlets Rack PDU |
Key Features
|  | HIGH RETENTION LOCKING OUTLETS
Receptacles have high retention and are compatible with P-Lock type power cords.
|  | BRANCHCIRCUIT PROTECTION This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses. |  | FLEXIBLE MOUNTING Includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details). |
|
|
|
|
|
|  | COLOR IDENTIFICATION Choose from six colors to designate circuits for rack PDUs in the data center. Color options include Blue, Red, Green, White, Yellow, and Black. |
|
|
|
|
| Family Description | The Server Technology Basic PDU provides reliable power distribution for installing IT equipment into the rack/cabinet.
|
|  | Family Specifications | | Branch Monitoring:None | None | Power Pivot Input: | No | | Branch Overcurrent Protection: | 5 kAIC | Product Height (inch): | 35.5 | | Branch Overcurrent Protection Type: | Circuit Breaker: 2-pole | Product Height (mm): | 902 | Dual Input: | No | Product Max Depth (inch)： | 3.39 | | High Retention Outlets: | Yes | Product Max Depth (mm): | 87 | | Input Current Display: | None | Product Nominal Depth (inch): | 1.75 | | Input Monitoring: | None | Product Nominal Depth (mm): | 45 | | Locking Outlets: | Yes | Product Width (inch): | 1.75 | | Max Operating Temperature: | 50 °C | Product Width (mm): | 45 | | Fast Movers: | No |
|
| | Mounting: | 0U Vertical |
|
| | Outlet Monitoring: | None |
|
| | PDU Platform: | None |
|
|
|
|
|
| | Product Specifications |
|
|
|
| | CB-26VEKE01F6 (BASIC) | CB-26V2CE01F6 (BASIC) | | DOWNLOAD DATASHEET | DOWNLOAD DATASHEET | | Input Power Capacity [Kw] | 7.3 | Input Power Capacity [Kw] | 5.0 | | Input Plug Type: | IEC 230V/32A 2P+PE 6Hr | Input Plug Type: | NAMA L6-30P | | Input Current【A] | 32 | Input Current【A] | 30 | | Input Current Rated【A】 | 32 | Input Current Rated【A】 | 24 | | Input Nominal Voltage【V] | 230 | Input Nominal Voltage【V] | 208 | | Input Phase: | 1-Phase Wye [L-N] | Input Phase: | 1-Phase [L-L] | | Input Cord Location: | Bottom/Front | Input Cord Location: | Bottom/Front | | Lutlet Form Factor: | Conventional | Lutlet Form Factor: | Conventional | | Total Outlets: | 26 | Total Outlets: | 26 | | IEC C13 Count: | 24 | IEC C13 Count: | 24 | | IEC C19 Count: | 2 | IEC C19 Count: | 2 |
|
|
|
|
CB-26V0AE01F6 (BASIC) REQUIRES PTCORD-L1, -L2, -L3, -L4, -L5, -L6, OR –L7 |
| | DOWNLOAD DATASHEET |
|
| | Input Power Capacity [Kw] | 3.6 |
|
| | Input Plug Type: | IEC C20 100-240V Inlet |
|
| | Input Current【A] | 20 |
|
| | Input Current Rated【A】 | 16 |
|
| | Input Nominal Voltage【V] | 208 |
|
| | Input Phase: | 1-Phase [L-N] |
|
| | Input Cord Location: | Bottom/Front |
|
| | Lutlet Form Factor: | Conventional |
|
| | Total Outlets: | 26 |
|
| | IEC C13 Count: | 24 |
|
| | IEC C19 Count: | 2 |
|
|
|
|
|
|
Basic PDU
You’re viewing Server Technology’s family of Basic PDUs. These PDU’s from Server Technology meet IEC data center requirements. Optional flexible mounting and color identification features are available. Server Technology’s Basic PDUs provide reliable power distribution for all devices in your equipment cabinet and ranges in power from 2kW-6kW per cabinet. Basic PDUs are available in single-phase 110-120V or 208-240V power distribution with 20A or 30A options and 3-Phase power distribution with 20Aand 30A options. Learn more about Server Technology’s basic PDUs with Zero-U Vertical Enclosures and shop from dozens of variations on our basic PDUs
DescriptionThe Server Technology® Basic PDU provides reliable power distribution for installing IT equipment into the rack/cabinet.
Inputs | Input Voltage (V): | 230 | | Input Plug: | IEC 230V/32A 2P+PE 6Hr | | Input Current (A): | 32 | | Input Current Rated (A): | 32 | | Input Power Capacity (kW): | 7.3 |
|
| | Outputs |
| | (24) x IEC 60320/C13 | Global Rating: ≤ 10A @230V L-N | | (2) x IEC 60320/C19 | Global Rating: ≤ 16A @230V L-N |
Branch Circuit ProtectionUL489 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating
PhysicalDimensions: 35.5in tall x 1.75in wide x 1.75in deep [902mm x 45mm x 45mm]
EnvironmentalOperating Environment: 32°F to 122°F / 0°C to 50°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations
Communications & SecurityNot Applicable
CertificationsGlobal:
SafetyEN 62368-1 (TUVR certified, T-mark) IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme) IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)
RoHS, European Hazardous Materials Directive, 2011/65/EU WEEE Compliant CE Mark UK Legislation RoHS, Electrical Equipment (Safety)
Measurement AccuracyInput Measurement Accuracy:
LED Current = ± 10% at 0.1 amp (0.3 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 5% at 0.01 amp resolution (above 0.25 amp)
|
