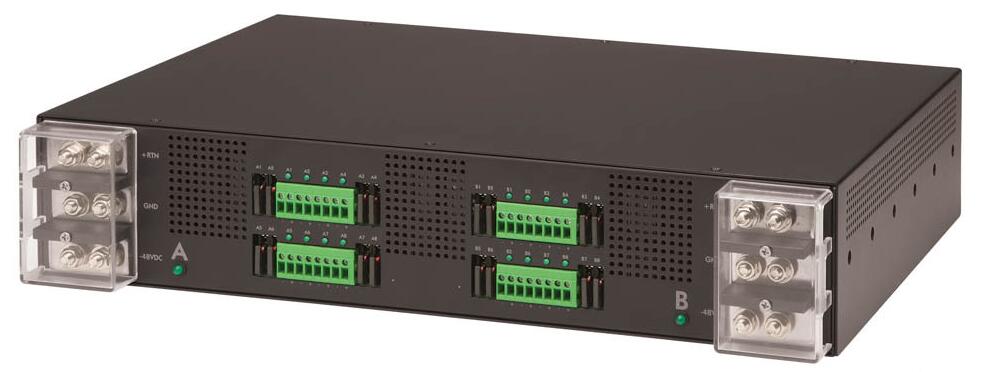

PRO1 Switched -48VDC (2) 100A inputs (16) 10A outputs Rack PDU |
| | Family Description | | The PRO1 Switched 48DCWC-16-2X100-A0 Intelligent PDU and Remote Power Manager minimizes the impact of locked-up routers, servers and other network devices on business-critical networks. CLECs, ILECs, ISPs and enterprises use the 48DCWC-16-2X100-A0 to manage equipment in remote sites, co-location facilities and network operation centers. The 48DCWC-16-2X100-A0 eliminates the need to dispatch a field service technician for manual intervention when devices lock-up. Using a 48DCWC-16-2X100-A0, the network operations center can quickly restart locked-up remote network servers to ensure that the network is fully operational around the clock. |
 |  |
| Key Features |
|
|
|
|
|
|  | DISCONNECT RATED CIRCUIT PROTECTION Each output is protected by a fuse or circuit breaker and is rated for hot disconnect. |  | OUTPUT CURRENT MONITORING Network monitoring provides access to current draw at each output and alerts when high usage risks a tripped circuit. |  | OUTPUT CONTROL Cycle power to individual outputs or groups of outputs to reboot devices or to power off unused terminals. |
|
|
|
|
|
|  | NETWORK MONITORING The PRO1 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more. |  | TEMPERATURE/ HUMIDITY MONITORING PRO1 Primary and Expansion units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications. |  | STAR MULTI-LINKING PRO1 provides the ability to link up to four power circuits using one IP address. First link provides backup power to network card. |
|
|
|
|
|
|  | HOT-SWAP NETWORK CARD Network access is ensured when power is lost to the Primary unit with backup power provided by the primary link unit. |
|
|
|
|
| Family Specifications | | Branch Monitoring: | None |
| Power Pivot Input: | No | Branch Overcurrent Protection: | Branch |
| Product Height (inch): | 3.5 | | Overcurrent Protection Type: | Fuse Disconnect - GMT |
| Product Height (mm): | 89 | | Dual Input: | Yes |
| Product Max Depth (inch): | 13.11 | | High Retention Outlets: | No |
| Product Max Depth (mm): | 333 | | Input Current Display: | None |
| Product Nominal Depth (inch):
| 12.0 | Input Monitoring:
| None |
| Product Nominal Depth (mm): | 305 | | Locking Outlets: | No |
| Product Width (inch): | 17.0 | | Max Operating Temperature: | 50 °C |
| Product Width (mm): | 432 | | Fast Movers: | No |
|
|
| | Mounting: | 2U Horizontal |
|
|
| | Outlet Monitoring: | Current (A) |
|
|
| | PDU Platform: | PRO1 |
|
|
|
| Product Specifications |
|
|
|
|
|
|
|
| | 48DCWC-16-2X100-A0 (-48 VDC) |
|
|
| | DOWNLOAD DATASHEET |
|
| | Input Power Capacity (kW): | 9.6 |
|
|
| | Input Plug Type: | Terminals |
|
|
| | Input Current (A): | 200 |
|
|
| | Input Current Rated (A): | 200 |
|
|
| | Input Nominal Voltage (V):- | -48 |
|
|
| | Input Phase: | DC |
|
|
| Input Cord Location:
| Horizontal |
|
|
| | Outlet Form Factor: |
|
|
|
| | Total Outlets: | 16 |
|
|
| | Other Outlets: | 16 |
|
|
|
-48 VDC PDU - 9.6kW, 48DCWC-16-2X100-A0
Description
No description available.
Inputs
|
| | Input Voltage (V): | -48 | | Input Current (A): | 200 | | Input Current Rated (A): | 200 | | Input Power Capacity (kW): | 9.6 |
|
| | OutPuts |
| Terminals:
| (16) x Screw-down terminals (10A max) |
Branch Circuit Protection GMT Fuses Included
Physical Dimensions: 3.5in tall x 17.0in wide x 12.0in deep [89mm x 432mm x 305mm]
Environmental Operating Environment: 32°F to 122°F / 0°C to 50°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation Quiescent / Unloaded Power Draw: < 10W for all configurations Communications & Security 10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector) Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU} Web-browser GUI and command- line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
CertificationsNorth American:
Safety (TUVR certified, cTUVus mark)EMC
Global:
SafetyEN 62368-1 (TUVR certified, T-mark) IEC 60950-1 incl. regional, national and harmonized differences (IECEE CB scheme) IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme)
EMCEN 55032 / IEC 55032 / CISPR 32 EN 55024 / CISPR 24 EN 55035 / IEC 55035 / CISPR 35 EN 61000-3-2 / IEC 61000-3-2 EN 61000-3-3 / IEC 61000-3-3
RoHS, European Hazardous Materials Directive, 2011/65/EU WEEE Compliant CE Mark UK Legislation RoHS, Electrical Equipment (Safety) and Electromagnetic Compatibility
Measurement Accuracy Input Measurement Accuracy: LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution GUI Current = ± 5% at 0.01 amp resolution (above 0.5 amp)
|
