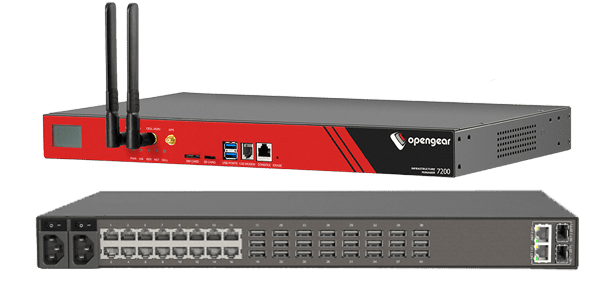

IM7200 Infrastructure Manager

具有 Smart OOB 和 Failover to Cellular

• 带嵌入式蜂窝的 Smart OOB™   和 Failover to Cellular™

• 灵活的连接性 – 嵌入式蜂窝、PSTN 和冗余以太网/光纤

• 带 24 端口交换机和 24 端口 USB 控制台的其它型号

• 易于布线，使用软件可选的引脚

• 灵活的连接性 – 嵌入式蜂窝、PSTN 和冗余以太网/光纤

• 强大的硬件，具有集成的 16 GB 内部存储

• 8–48端口串行控制台服务器。还提供16端口+24 USB 2.0控制台端口和16端口+24千兆以太网交换机

• 在运行固件4.0或更高版本的设备上集成RESTful API引擎

• 具有内置光纤SFP和GbE铜缆端口的双网络连接

• 零接触供应（ZTP）通过网络实现自动化，无需手动用户交互

• 全球接入的嵌入式LTE-A Pro 蜂窝模块

• 64GB内部存储器

• 软件可选串行引脚

• 链路层发现协议（LLDP）在本地网络上发现、识别和验证连接的设备。

• PSTN和可选的4G LTE蜂窝模块，用于应急网络远程Smart OOB

• AAA，包括LDAP和TACACS+，每个用户和组的锁定端口

• 使用Lighthouse集中管理企业所有数据中心和远程站点

• 企业级安全，FIPS 140-2验证加密

• 故障切换到蜂窝网络 用于带外访问

• 来自100多家供应商的PDU和UPS设备的统一电源管理

• 使用Lighthouse集中管理所有企业数据中心和远程站点

• 带有可选EMD模块的环境监测

• Nagios和SolarWinds的整合审计跟踪日志记录到16GB本地存储或远程日志服务器，可使用SD卡扩展

Understand our Models

Opengear manufactures various models to suit your needs. Please use our product selector to help identify the specific configuration you require

Models and Connectors

All models:

• Dual LAN ports available by selecting two from four available ports (x 10/100/1000 RJ45 copper and 2 x SFP fiber module slots)

• All serial ports are RJ45 RS-232 (50 to 230,400bps, software selectable Cisco-straight or Cisco-rolled pinout)

• 1 x Internal V.92 modem with RJ11 phone socket

• 2 x USB 3.0 host ports

• LCD panel

• 1 x RJ45 RS-232 local console port (Cisco-straight)

• Dual internal universal AC or DC power supplies

IM7208: 8 x RS-232 serial ports
IM7216: 16 x RS-232 serial ports
IM7216-2-24U: 16 x RS-232 serial ports + 24 USB 2.0 console ports
IM7216-2-24E: 16 x RS-232 serial ports + 24 Port Gigabit Switch
IM7232: 32 x RS-232 serial ports
IM7248: 48 x RS-232 serial ports
Cellular models: (IM7200-LX)

• Internal 4G LTE modem & Mini-SIM card slot

• 3 x SMA antenna connectors – for receive diversity and GPS

• 1 x external 7 band cellular antenna. Optional diversity and GPS antennas

Power

• Dual internal power supplies

• DAC models dual socket universal 100-240V AC

• DDC models dual +/- 36V to 72V DC

• Power consumption of IM7216-24E – 40W

Other Agency Approvals

EC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, C-Tick, FIPS 140-2 validated module Certificate #2473, CCC

Memory and CPU

• 1GHz ARM SoC (Marvell 88F6283)

• 256MB SDRAM

• 64MB embedded NOR Flash

• 16 Gigabytes internal flash

MTBF:

100,000 hours

Security & Authentication

IPSec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS with RSA SecurID and LDAP authentication, PAP/CHAP authentication (dial-up), Dial-back support, Local authentication, System event syslog, Authenticated NTP

Wireless and Cellular Specifications
IM7200-LMA/LMV & IM7200-LMCT/B/R models

Modem Device: These models utilize the Sierra Wireless MC7354. -LMA is AT&T approved. -LMV is Verizon ODI certified and can be used for Verizon Private Network. The modem is CE, FCC, GCF, IC, NCC, PTCRB certified and can be reprogrammed by the end-user to work with other carriers

Air Interface: LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT

Frequency Bands: 4G LTE B2, B4, B5, B13, B17, B25 3G WCDMA B1, B2, B4, B5, B8 EVDO BC0, BC1, BC10 EDGE, GSM, GPRS 850, 900, 1800, 1900 CDMA BC0, BC1, BC10

Data Services: Transfer rate (peak): Upload 50 Mbps/Download 100 Mbps

IM7200-LR models

Modem Device: -LR model utilizes Sierra Wireless MC7304. CE, GCF, NCC, FCC certified

Air Interface: LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, ; Supports most carriers EMEA, APAC, ANZ.

Frequency Bands: 4G LTE B1, B3, B7, B8, B20 3G WCDMAB1, B2, B5, B8 EDGE, GSM, GPRS 850, 900, 1800, 1900

Data Services: Transfer rate (peak): Upload 50 Mbps/Download 100 Mbps

IM7200-LMP models

Modem Device: -LMP model utilizes Sierra Wireless MC7430. CE, GCF, JRF/JPA, NCC certified

Air Interface: LTE-FDD, LTE-TDD, HSPA+, TD-SCDMA; Supports most carriers in APAC region.   MIC-R and MIC-T approved for use in Japan and Brazil

Frequency Bands: 4G LTE B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41 3G WCDMA B1, B5, B6, B8, B9, B19 TD-SCDMA B39

Data Services: Transfer rate (peak): Upload 50 Mbps/Download 300 Mbps

Wireless Access Point (Units built before 4/1/2019 have an embedded WiFi module)

• WEP, WPAPSK, WPA2-PSK, WPA-None, WPA-PEAP-MSCHAPv2

• Wireless Encryption: TKIP, AES

For Egypt, the operating frequency is limited to the following frequencies:

• 802.11b/g/n ISM Band: 2.412 ~ 2.4835 GHz

• 802.11a ISM Band: 5.15 ~ 5.35 GHz

8 serial software selectable, dual DC, Dual 1 GbE Ethernet or fiber SFP, 16GB flash, v.92 modem

  Rackmount

IM7216-2-DAC-LMCB

IM7216-2-DDC-LMCR

IM7232-2-DAC-LMCR

IM7248-2-DAC-LMV

IM7248-2-DDC-LMV

IM7216-2-24E-DAC-LMV

IM7216-2-24U-DAC-LMV

Smoke detector/alarm (220V AC, IEC C-13)

Smoke detector/alarm (110V AC, NEMA 5-15)

Water leak detector – 3′ Cable length

GPS active antenna

Antenna – GPS Active – 6′ Cable length – For all 4G LTE Cellular units

Adapter – DB9F to RJ45 crossover serial – DTE -For X2 Pinout
