产品详情

LHM2-P

简介： HDMI 2.0延长线，4K延长线，传输距离达100米
类型： HDMI 延长线
品牌： OPTICIS
型号： LHM2-P
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购

Description

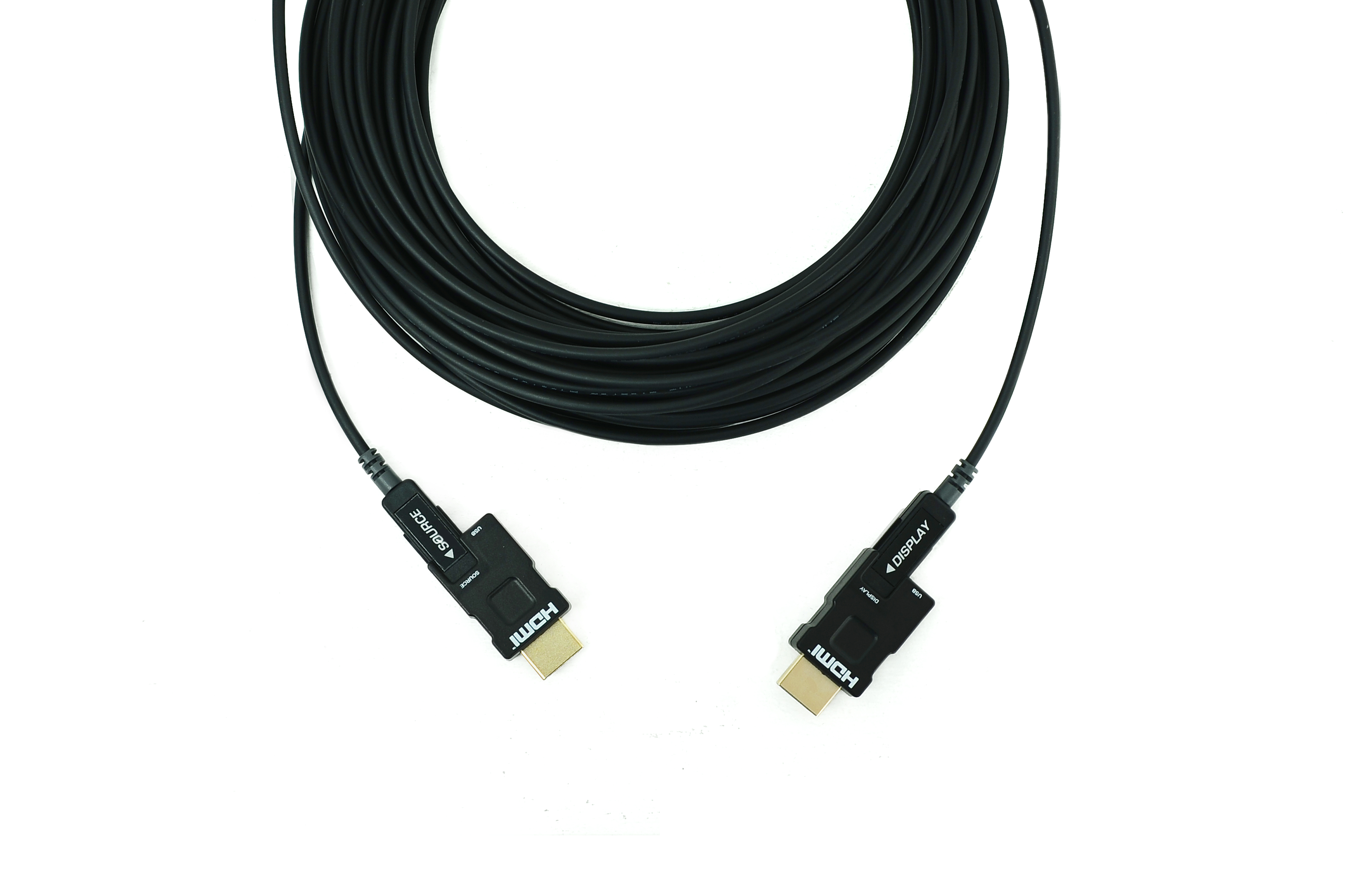

Detachable 4K HDMI 2.0 Active Optical Cable, It enables to deliver 4K DCI (4096x2160) at 60Hz signal up to 100m (328ft). It avoids any scaling or data compression for lessening a burden of data transmission.


LHM2-P is designed for critical display applications that demand flawless HDMI signal integrity and it provides transparent signal transmission over plenum graded, LSZH graded, or TPU hybrid cable.

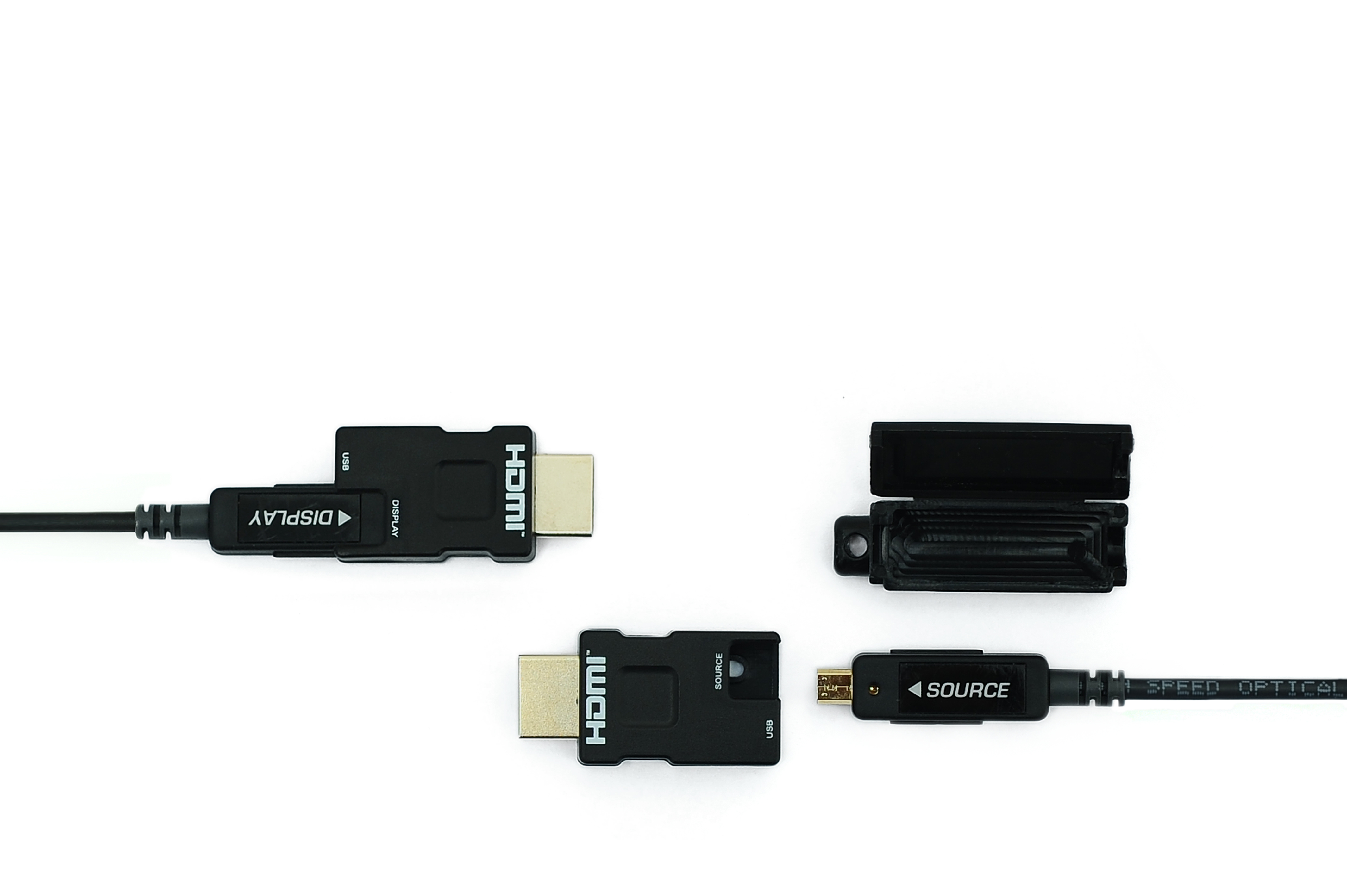

LHM2-P offers perfect flexibility during installation by separating HDMI connector part and Active Optical Cable part. It gives slim, light, easy installation like a general copper HDMI cable. LHM2-P is powered by external 5V micro USB power supply cable.


It passes CEC, EDID & HDCP (High Definition Contents Protection) for better installation flexibility and compatibility.











Product Specifications

• Extends 4K DCI (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)

• Transmits HDMI data up to 100m (328feet) over hybrid cable

• Cable options available:

-LHM2-PPxx : Plenum Jacket

-LHM2-PLxx: LSZH Jacket

-LHM2-PTxx:TPU Jacket

*Note: “xx” stands for the length of the cable

Ex: 10m of LHM2-PP LHM2-PP10 (“A0” for 100m)

• Offers perfect flexibility during installation by separating HDMI connector from cable

• Offers 500N pulling and crush load strength with bending radius of 6mm

• Supports 3D contents transmission

• Supports HDMI2.0 standards feature

• Complies with CEC, EDID, and HDCP 2.2

• Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps

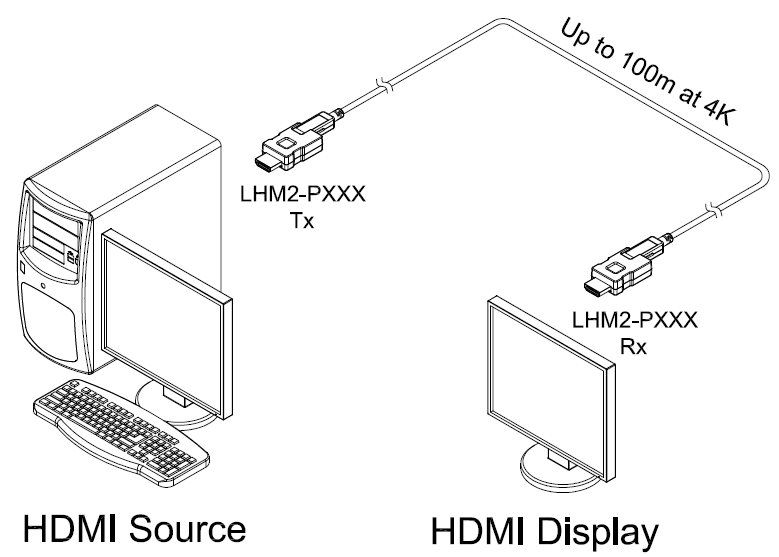

Connection Diagram


LHM2-P -3.png









PRODUCT MODEL
DESCRIPTION



HDFX-700-TR
Extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one(1) LC multi-mode fiber(OM3)



HDFX-500-TR
Extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one LC multi-mode fiber.



HDFX-350-TR
Extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one duplex LC multi-mode fibers.



HDFX-300-TR
Extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one duplex LC multi-mode fibers.



HDFX-200-TR
Transmits WUXGA (1920x1200) at 60Hz or 1080p at 60Hz refresh ratio up to 300meters (985feet) over one (1) LC Multi-mode fiber.



HDFX-150-TR
Is designed compact enough to be fitted into various installation environments with four (4) LC fibers connection. The transmitter and receiver set, enables to transmit WUXGA (1920x1200) or 1080p at 60Hz signal up to 300m (985feet),



HDFC-200D
Detachable HDMI 2.0 active optical cable,   enables to transmit 4K (4096x2160) at 60Hz signal up to 100m (384feet) over plenum graded (or LSZH) hybrid cable.



HDFC-200P
HDMI 2.0 active optical cable, enables to transmit 4K (4096x2160) at 60Hz signal up to 100m (328feet) over plenum graded (or LSZH) hybrid cable.



LHM2-P
Detachable 4K HDMI 2.0 Active Optical Cable, It enables to deliver 4K DCI (4096x2160) at 60Hz signal up to 100m (328ft).



LHM2-N
4K HDMI 2.0 Active Optical Cable, LHM2-N enables to deliver 4K DCI (4096x2160) at 60Hz signal up to 100m (328ft)



HDMI Product Group differences

HDFX 产品分类表.jpg
