产品详情

OMM-2500

简介： 32 X 32 DVI / HDMI / SDI / DisplayPort Optical Modular Matrix
类型： 视频矩阵
品牌： OPTICIS
型号： OMM-2500
马上咨询
产品详情
产品特点
应用方案
文档下载
立即订购

Description

The OMM-2500 enables to switch up to 32 DVI /HDMI / SDI / DisplayPort sources to 32 different digital displays by using general PC software like Hyperlink terminal, telnet or web browser. It can be configured using 8 input and output cards and each card has 4 ports of input and output.


Easy programming feature is accomplished in various manners such as manual input of front key or command line (ASCII or Binary code) input with various interfaces of RS-232, and TCP/IP and it offers you flexible installation with other video controllers or control software.

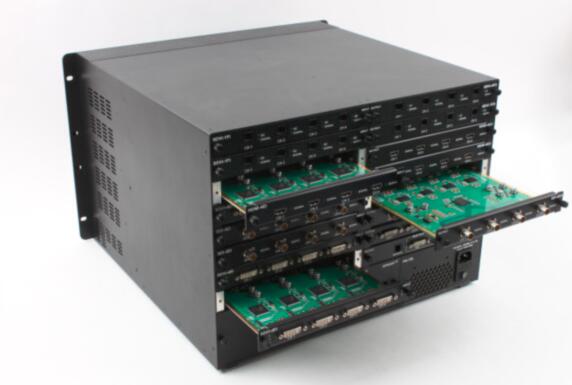

The input and output cards are composed of 4 ports DVI / HDMI /SDI / DisplayPort, therefore user can configures any input and output channels from 4X4 to 32X32 by plugging the cards into OMM-2500 mainframe. In case of Dual link DVI card (DDVI-2EI / DDVI-2EO), it is composed of 2 ports, therefore configuration for input and output channels are from 2x2 to 16x16. It equips electrical DVI, HDMI, SDI, DisplayPort and optical DVI (SDVI-1FI/SDVI-1FO) input and output cards.

Optical DVI input and output cards works perfectly with OPTICIS 1 fiber DVI extension module, DVFX-100 and maximum 1Km DVI signal extension can be managed with this combination. It also supports wide-range compatibility with respect to systems, consisting of various DVI sources and various digital monitors. It has been designed not only to fully execute the DDC /HDCP (Electrical DVI, HDMI cards only) function between any inputs and outputs, but also to have users designate EDID to inputs for wide compatibility.

Embedded video signal generator and diagnostic function help the user solve the installation problem with easy and optional quad multi-viewer card saves the installation cost.






Product Specifications

• OMM-2500 chassis: 1 EA

• Input output cards (Option)
   SDVI-4EI: 4 ports electrical Single link DVI input card
   SDVI-4EO: 4 ports electrical Single link DVI output card
   DDVI-2EI: 2 ports electrical Dual link DVI input card
   DDVI-2EO: 2 ports electrical Dual link DVI output card
   HDMI-4EI: 4 ports electrical HDMI input card
   HDMI-4EO: 4 ports electrical HDMI output card
   SDI-4EI: 4 ports electrical SDI input card
   SDI-4EO: 4 ports electrical SDI output card
   DP1-4EI: 4 ports electrical DisplayPort input card
   DP1-4EO: 4 ports electrical DisplayPort output card
   SDVI-1FI: 4 ports 1 fiber optical DVI input card
   SDVI-1FO: 4ports 1 fiber optical DVI output card
   QDVI-O: Multi-viewer card
• AC power cord: 1 EA
• Power supplier: 1 EA (Dual power supplier is an option)
• User manual: 1 EA
• Firmware download cable: 1 EA
• RS-232 cable (Straight type): 1 EA



Shipping Group

• Input output cards (Option)

- SDVI-4EI: 4 ports electrical Single link DVI input card

- SDVI-4EO: 4 ports electrical Single link DVI output card

- DDVI-2EI: 2 ports electrical Dual link DVI input card

- DDVI-2EO: 2 ports electrical Dual link DVI output card

- HDMI-4EI: 4 ports electrical HDMI input card

- HDMI-4EO: 4 ports electrical HDMI output card

- SDI-4EI: 4 ports electrical SDI input card

- SDI-4EO: 4 ports electrical SDI output card

- DP1-4EI: 4 ports electrical DisplayPort input card

- DP1-4EO: 4 ports electrical DisplayPort output card

- SDVI-1FI: 4 ports 1 fiber optical DVI input card

- SDVI-1FO: 4ports 1 fiber optical DVI output card

- QDVI-O: Multi-viewer card

• Firmware download cable: 1 EA

• RS-232 cable (Straight type): 1 EA

• PC software CD: 1 EA

• user manual

• DC adapter

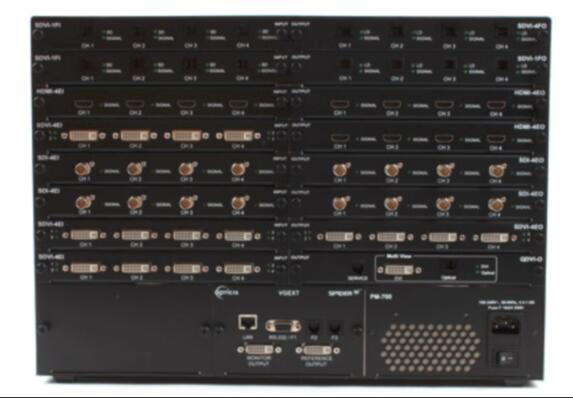

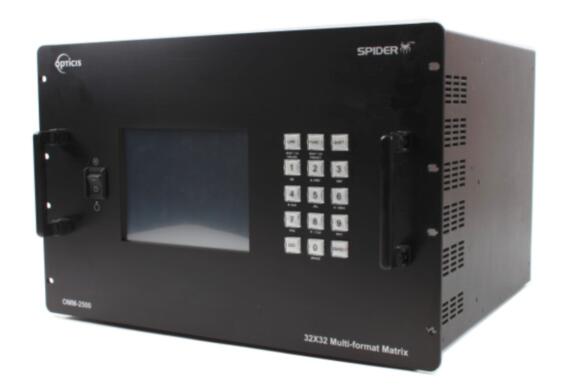

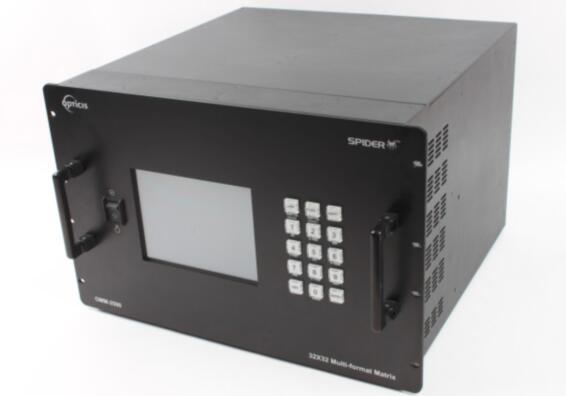

OMM-2500 -1.jpg



OMM-2500 -3.jpg



OMM-2500 -2.jpg

PRODUCT MODEL
DESCRIPTION



OMM-2500
OMM-2500 enables to switch up to 32 DVI /HDMI / SDI / DisplayPort sources to 32 different digital displays by using general PC software like Hyperlink terminal, telnet or web browser. It can be configured using 8 input and output cards and each card has 4 ports of input and output.



OMM-1000
OMM-1000 enables you to switch up to 16 DVI / HDMI / SDI / DisplayPort sources to 16 different digital displays by using general PC software like Hyperlink terminal, telnet or web browser. It can be configured by using 4 different input and output cards and each card has 4 ports of input and output.



ODM-88
ODM-88 enables you to make cross-switch up to 8 digital displays from up to 8 DVI sources from host computers in far locations. Host computers in remote locations control ODM88 either using general PC software like Hyperlink terminal (serial communication), web browser (LAN), or using Opticis dedicated software that is included..



OHM-88

OHM-88 enable you to cross-switch between up to 8 HDMI/DVI sources from HDMI display sources or host computers. Host computers in remote locations control OHM88 either using general PC software like Hyperlink terminal (serial communication), web browsers (LAN) or Opticis’ dedicated software that is included.




OHM-44UHD
OHM-44UHD provides a high level of audio and video performance with support for resolutions up to 4K@60Hz (RGB & YCbCr : 4:4:4). It also supports HDR (High Dynamic Range) to deliver more realistic and objective video signal as well as pass-through support of digital audio formats to bring lossless sound.
