HDFC-200P HMDI2.0延长线
产品详情
产品特点
应用方案
文档下载
品牌: OPTICIS 型号: HDFC-200P

HDMI 2.0 active optical cable, HDFC-200P, enables to transmit 4K (4096x2160) at 60Hz signal up to 100m (328feet) over plenum graded (or LSZH) hybrid cable. It avoids any scaling or data compression for lessening a burden of data transmission.


HDFC-200P is designed compact enough to be fitted into various installation environments with cutting edge technology performance. It gives slim, light, easy installation like a general copper HDMI cable. It can be operated by DDC 5V from HDMI port of HDMI source without any external DC power or USB power.



HDFC-200P is compliant with HDMI standards features like CEC, EDID, and HDCP 2.2 for better installation flexibility and compatibility. It also supports HDR to deliver more realistic, and objective video signal.


HDFC-200P is designed compact enough to be fitted into various installation environments with cutting edge technology performance. It gives slim, light, easy installation like a general copper HDMI cable. It can be operated by DDC 5V from HDMI port of HDMI source without any external DC power or USB power.

HDFC-200P is compliant with HDMI standards features like CEC, EDID, and HDCP 2.2 for better installation flexibility and compatibility. It also supports HDR to deliver more realistic, and objective video signal.



产品特点:

Extends up to 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)

Transmits HDMI 2.0 data up to 100m (328feet) over hybrid cabl

Adopts plenum graded (or LSZH, Low Smoke Zero Halogen) hybrid cable

   • Operated by HDMI source without external power

   • Supports 3D contents transmission

Supports HDMI2.0 standards feature

Complies with CEC, EDID, and HDCP 2.2

Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps



包装明细:

•   HDFC-200P
•   User manual

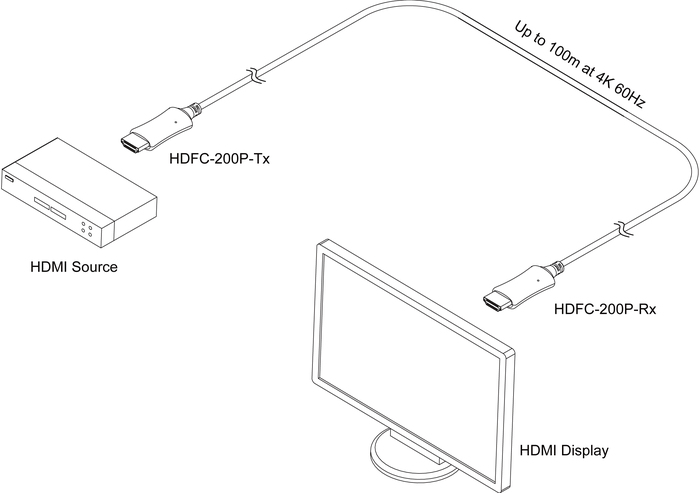

应用方案:
